Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C6 SEMC16X100

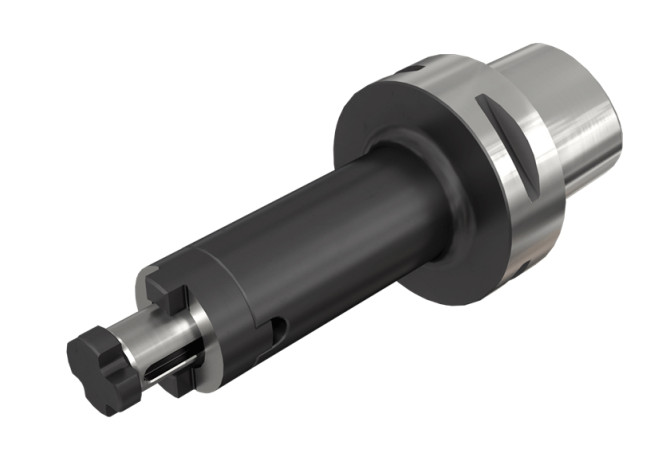

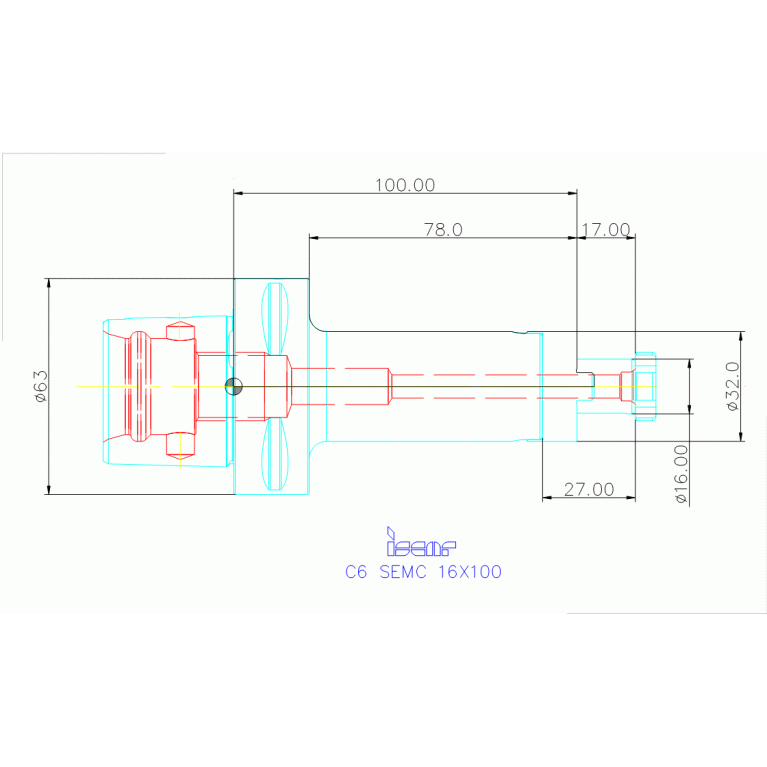

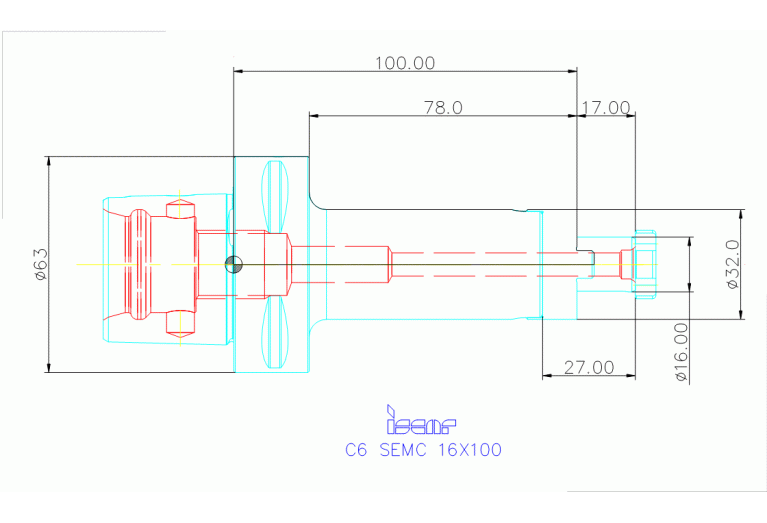

C6 SEMC16X100

Артикул: 4561399

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

COMPC Company code

IS - Iscar

CZCWS Connection size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

DIN 6358 COMBI Shell Mill Holders with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks

ID Technical product number

4561399

Interface codes

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

78 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CZCWS Connection size code

0160

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

C6 SEMC16X100

OAL Overall length

155 mm

WT Weight of item

1.28 kg
