Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C6 SEM16X100 C

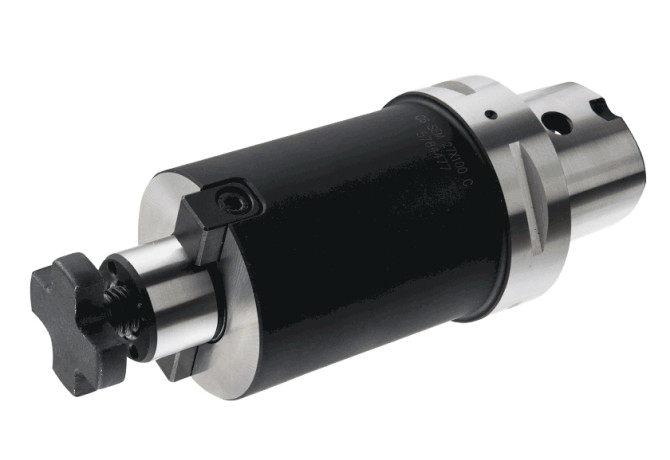

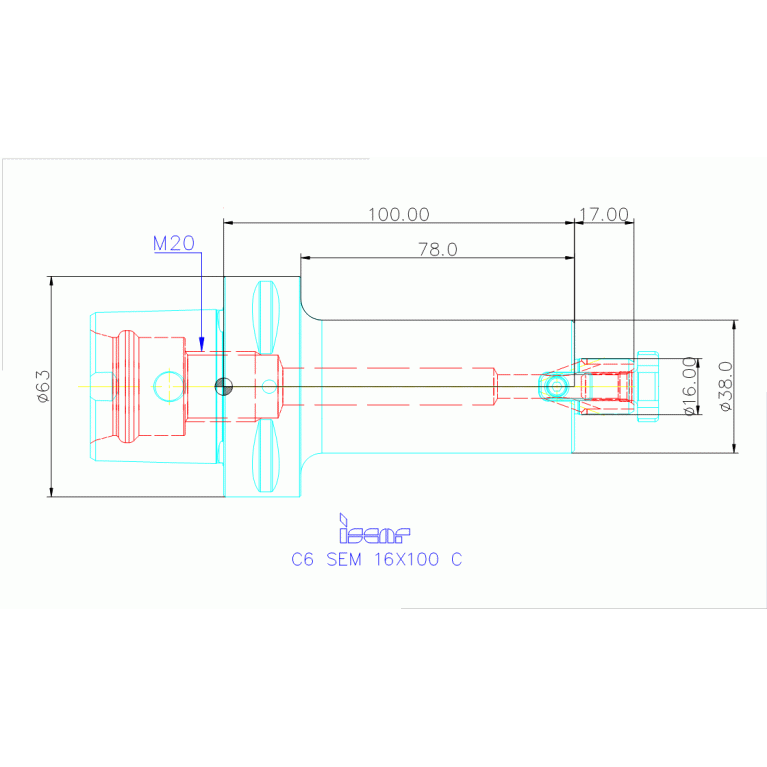

C6 SEM16X100 C

Артикул: 4561376

В наличии

В корзину

Описание

Характеристики

BD Body diameter

38 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Connection size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS06300195

FamilyProducts

ISO 3937 Shell Mill Holders with Coolant Holes and CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks

ID Technical product number

4561376

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

78 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA01600210

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

Name Identifying order number

C6 SEM16X100 C

OAL Overall length

155 mm

WT Weight of item

1.41 kg
