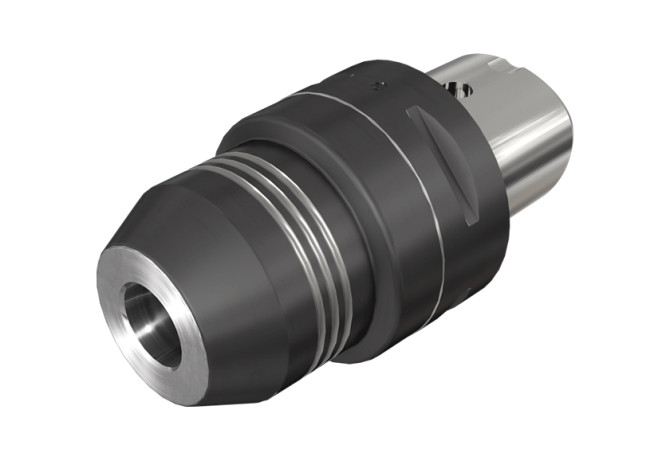

C6 HYDRO 12X75 HD

C6 HYDRO 12X75 HD C6 HYDRO 12X75 HD C6 HYDRO 12X75 HD

C6 HYDRO 12X75 HD

Iscar
Артикул: 3375377
В наличии
В корзину
Описание
Характеристики

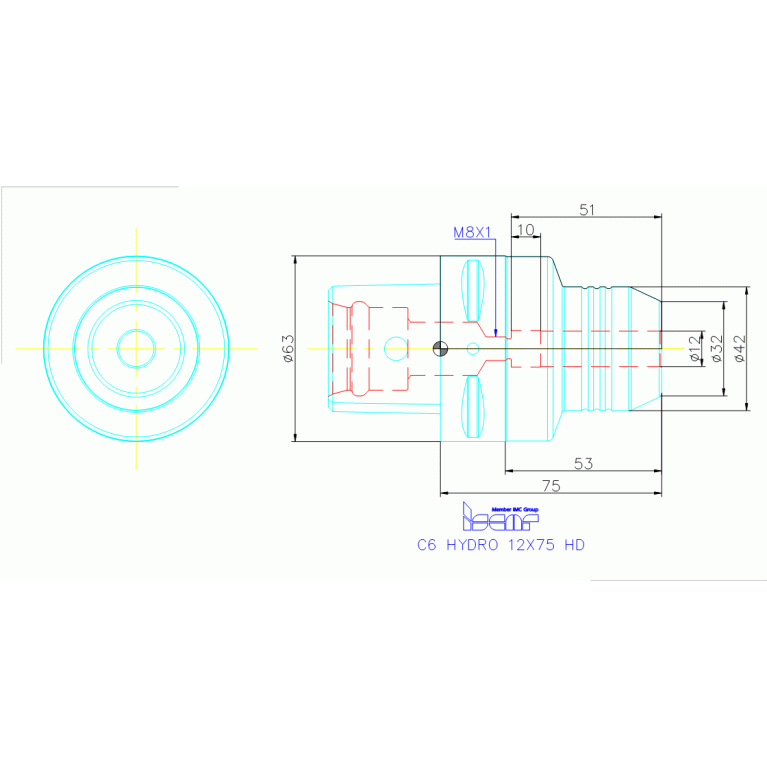

BD Body diameter
42 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0120
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DF Flange diameter
155 mm
DIN
CCS06300195
FamilyProducts
Hydraulic Chucks with CAMFIX Shanks
ID Technical product number
3375377
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
53 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0120
LOC-01 ISO
ZYL01G1200h$06
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01200115
LOC-02 CCFWS Connection code form
01
LOC-02 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Connection code type
ZYL cylindrical shank
LOC-02 CCUWS Connection code unit base
1 Metric with coolant
LOC-02 CZCWS Connection size code
0120
LOC-02 ISO
HYD01G1200h$06
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HYD01200115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
75 mm
Name Identifying order number
C6 HYDRO 12X75 HD
WT Weight of item
1.44 kg
