Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C6 EM32X95 E

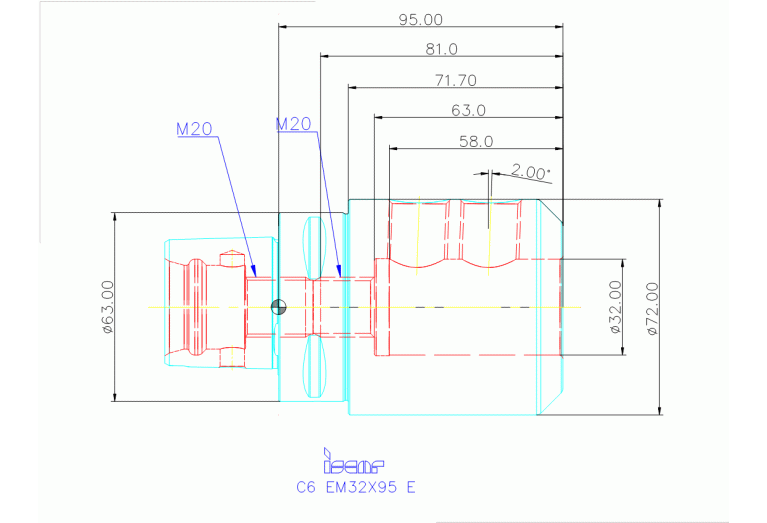

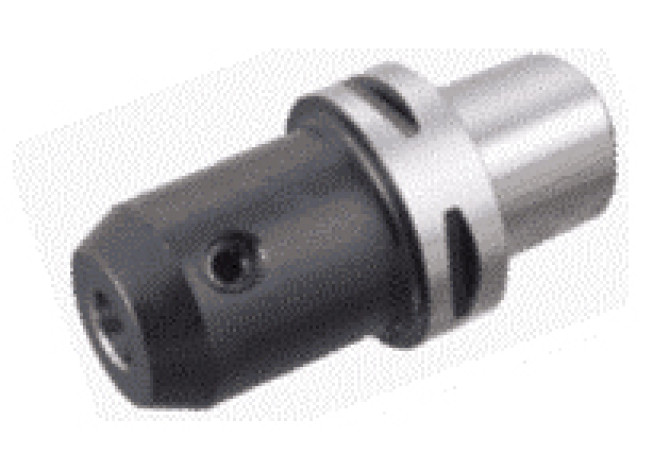

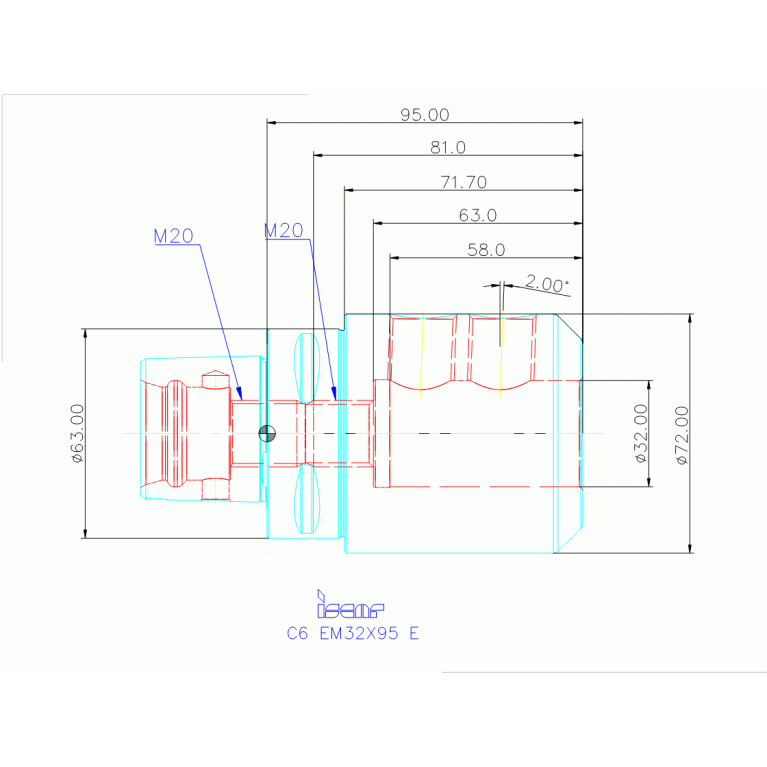

C6 EM32X95 E

Артикул: 4561397

В наличии

В корзину

Описание

Характеристики

BD Body diameter

72 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS06300195

FamilyProducts

DIN 1835 Form E Drill Holders with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks

ID Technical product number

4561397

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

73 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 ISO

ZYL13G3200h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03201315

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

95 mm

Name Identifying order number

C6 EM32X95 E

OAL Overall length

133 mm

WT Weight of item

2.5 kg
