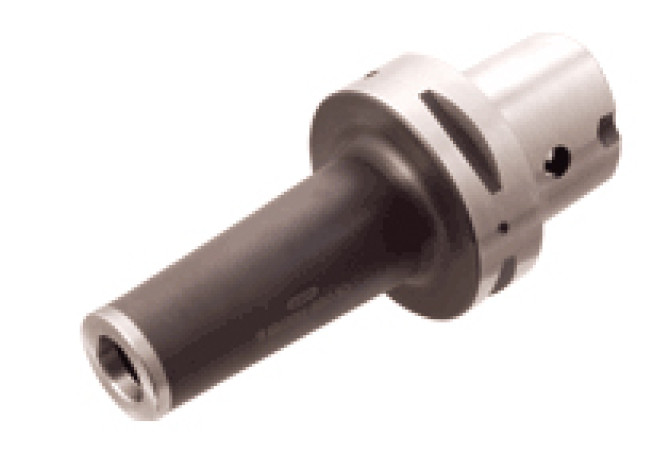

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C5 ODP 16X53

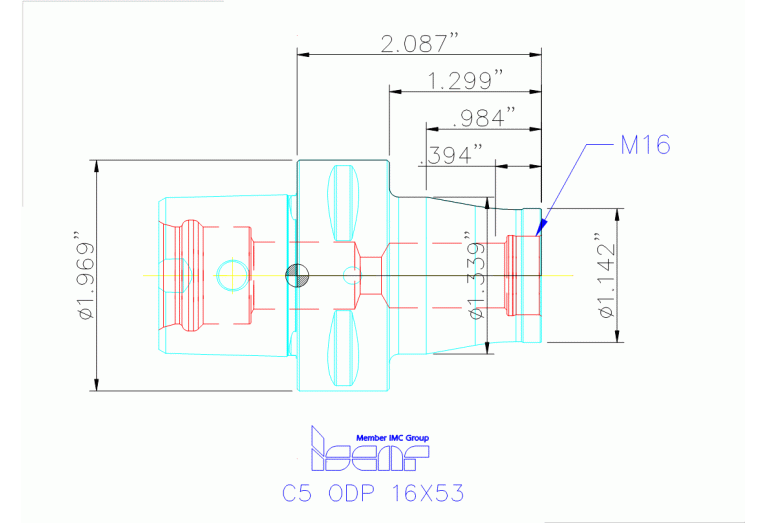

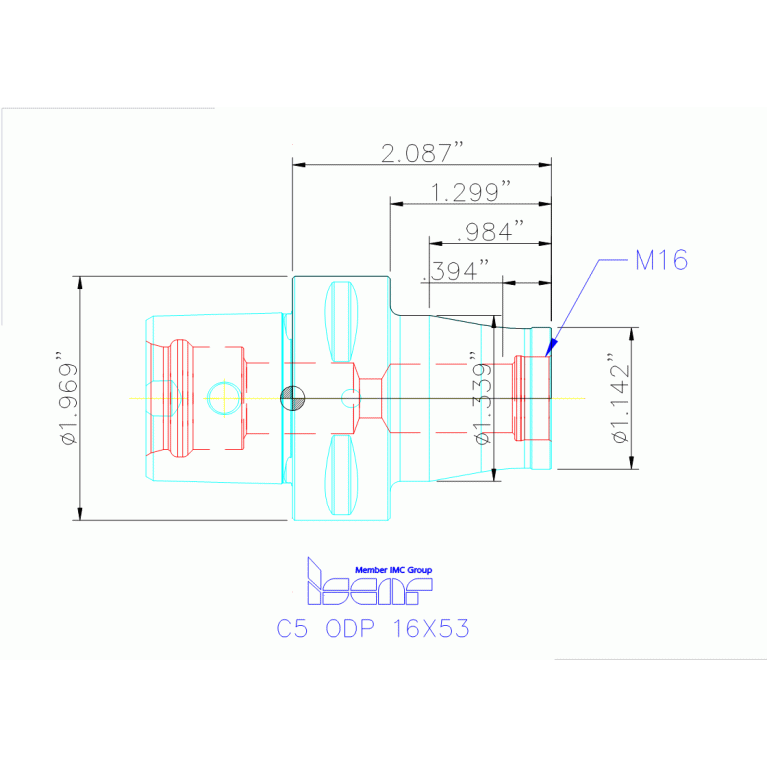

C5 ODP 16X53

Артикул: 4509599

В наличии

В корзину

Описание

Характеристики

BD Body diameter

29 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

COMPC Company code

IS - Iscar

CZCWS Connection size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

FLEXFIT Threaded Connection Shanks with CAMFIX (ISO 26623-1) Adaptation

HAND Cutting direction

R - Right

ID Technical product number

4509599

Interface codes

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

33 mm

LF Functional length

53 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CZCWS Connection size code

0160

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

53 mm

Name Identifying order number

C5 ODP 16X53

OAL Overall length

83 mm

THSZWS Connection thread nominal size workpiece side

M16

WT Weight of item

0.65 kg
