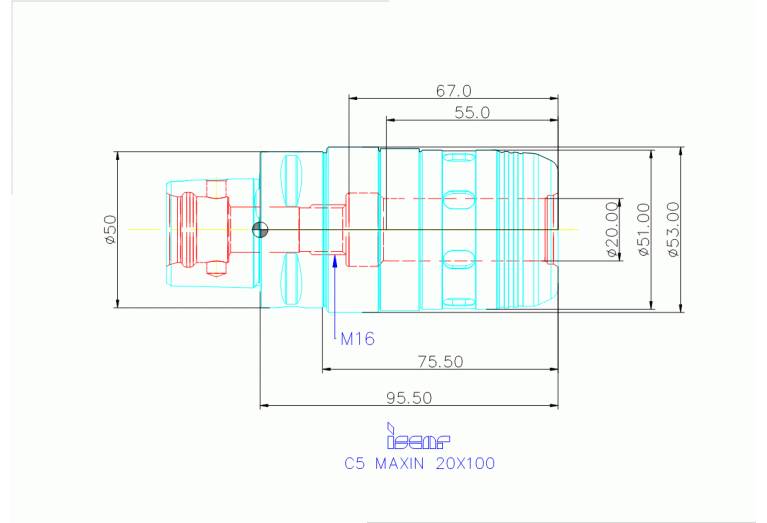

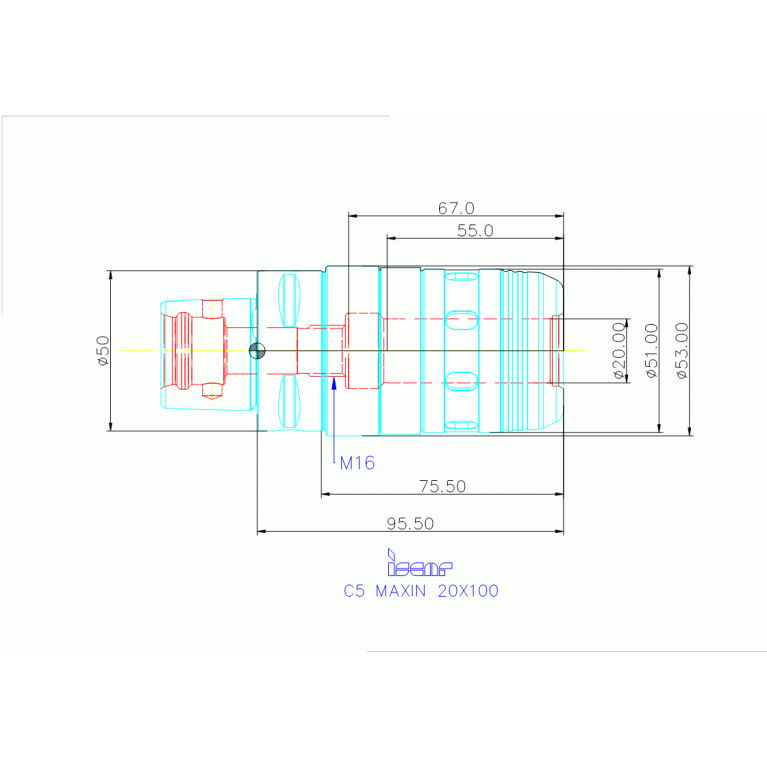

C5 MAXIN 20X100

Артикул: 4561481

В наличии

В корзину

Описание

Характеристики

BD Body diameter

51 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

COMPC Company code

IS - Iscar

CZCWS Connection size code

0200

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

MAXIN Power Chucks with CAMFIX (ISO 26623-1 standard) Exchangeable Shanks

ID Technical product number

4561481

Interface codes

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

75 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CZCWS Connection size code

0200

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

96 mm

Name Identifying order number

C5 MAXIN 20X100

OAL Overall length

126 mm

WT Weight of item

0.87 kg
