Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C5 ER25X100

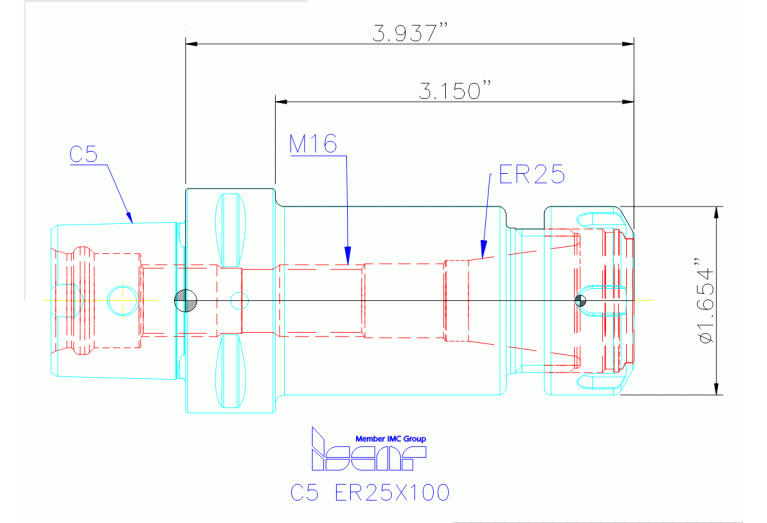

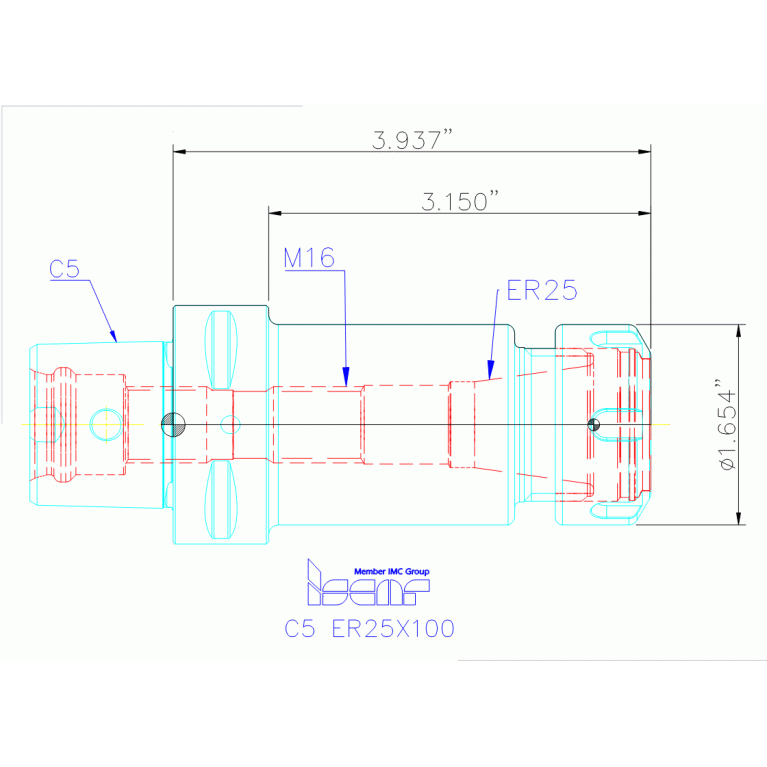

C5 ER25X100

Артикул: 4561438

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

COMPC Company code

IS - Iscar

CZCWS Connection size code

0250

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

DIN 6499 ER Collet Chucks with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks

ID Technical product number

4561438

Interface codes

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

80 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CZCWS Connection size code

0250

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

100 mm

Name Identifying order number

C5 ER25X100

OAL Overall length

130 mm

WT Weight of item

0.93 kg
