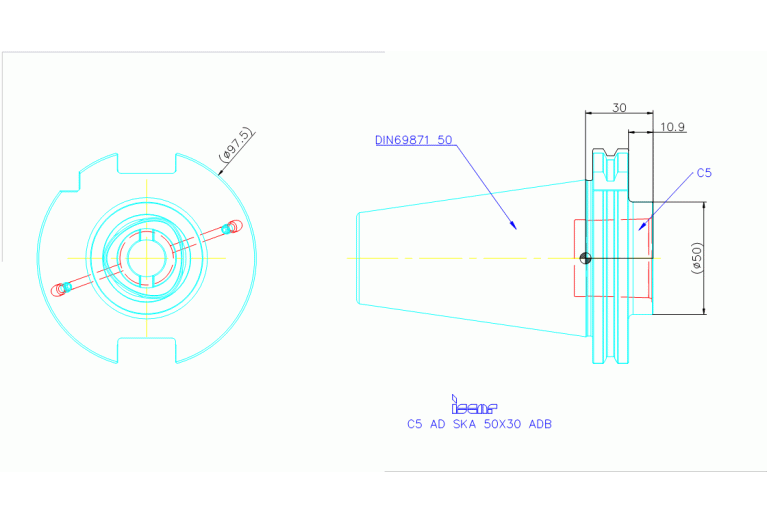

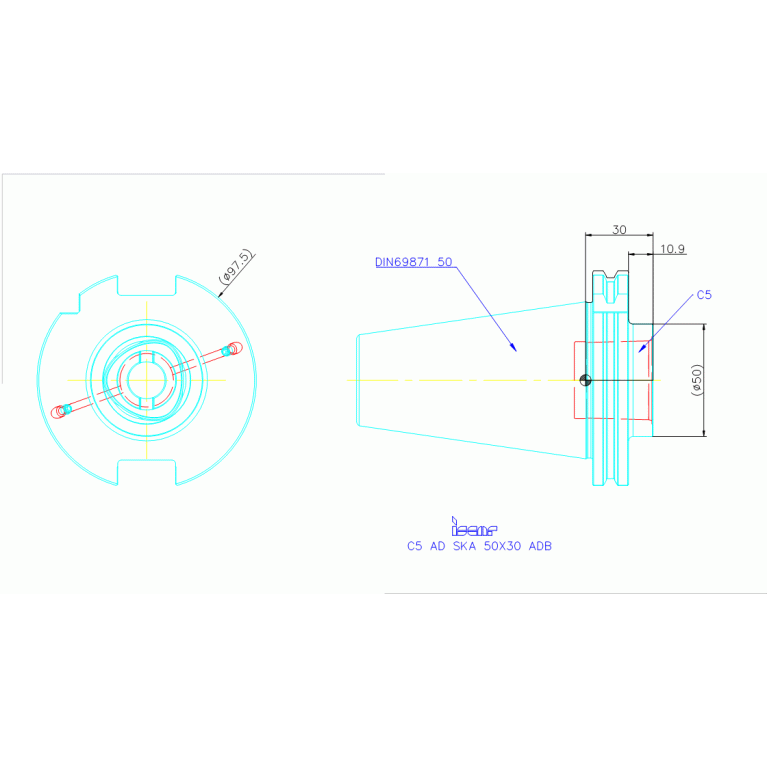

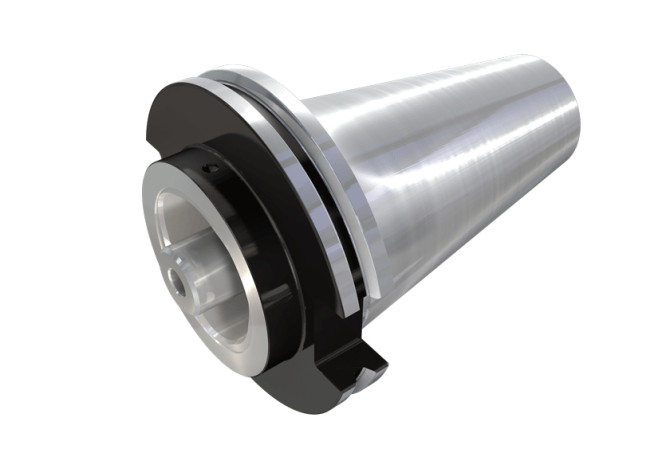

C5 AD SKA 50X30 ADB

Артикул: 4510334

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

CCS

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0500

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

97.5 mm

DIN

SKG05001795

FamilyProducts

CAMFIX (ISO 26623-1) Holders with DIN 69871 Form AD/ADB Tapered Shanks

ID Technical product number

4510334

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

11 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0500

LOC-01 ISO

CCS03C0500$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS05000395

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

30 mm

Name Identifying order number

C5 AD SKA 50X30 ADB

OAL Overall length

131.75 mm

WT Weight of item

2.61 kg
