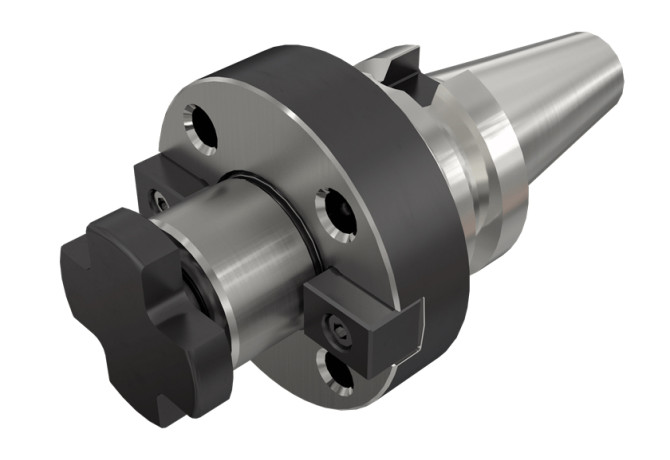

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric BT50 FC FM60

BT50 FC FM60

Артикул: 4509911

В наличии

В корзину

Описание

Характеристики

BD Body diameter

128 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0600

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

100 mm

DIN

SKG05005185

FamilyProducts

Face Mill Holders with BT MAS-403 Face Contact A/AD Tapered Shanks

ID Technical product number

4509911

Interface codes

J6 / J61

ISO

SKG51C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

41.5 mm

LF Functional length

88 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0600

LOC-01 ISO

FDA02G6000H$07

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA06000200

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG51C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005185

Name Identifying order number

BT50 FC FM60

OAL Overall length

231.3 mm

WT Weight of item

9.45 kg
