Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric BT40 FC SRKIN18X90

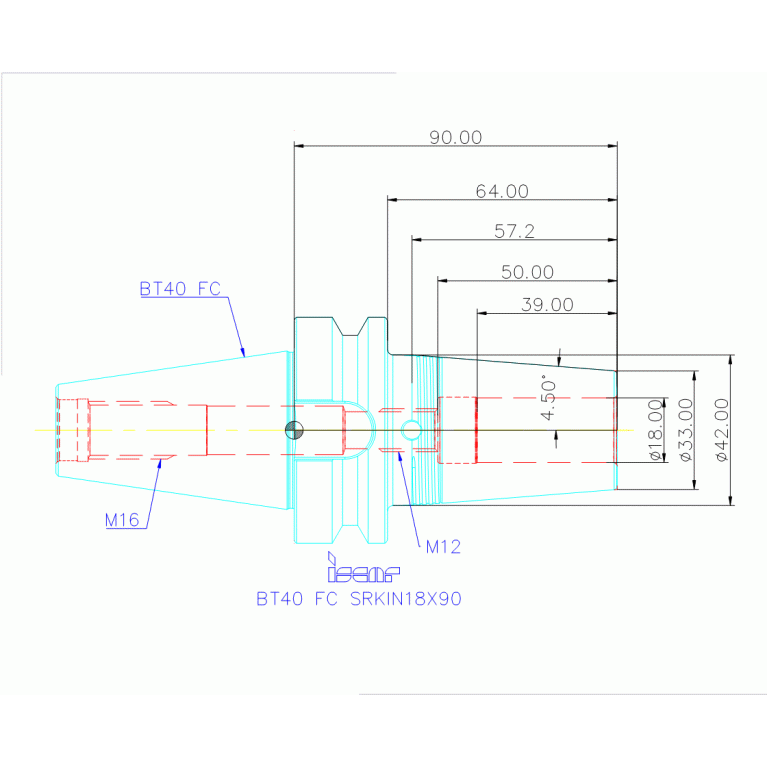

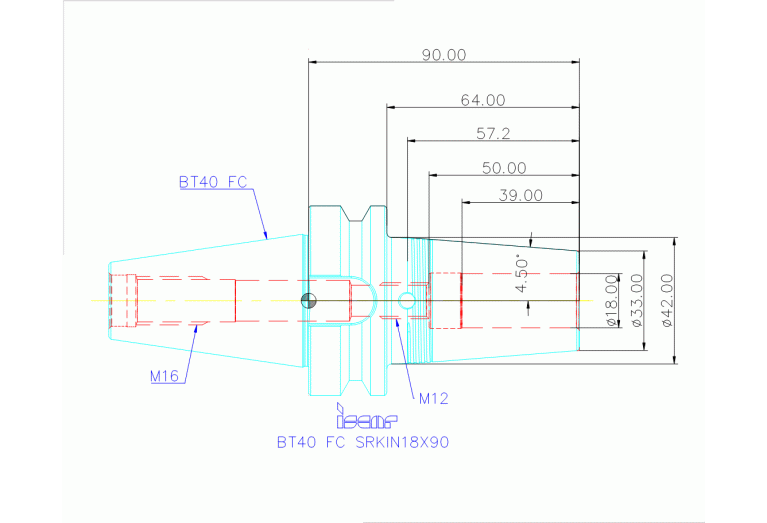

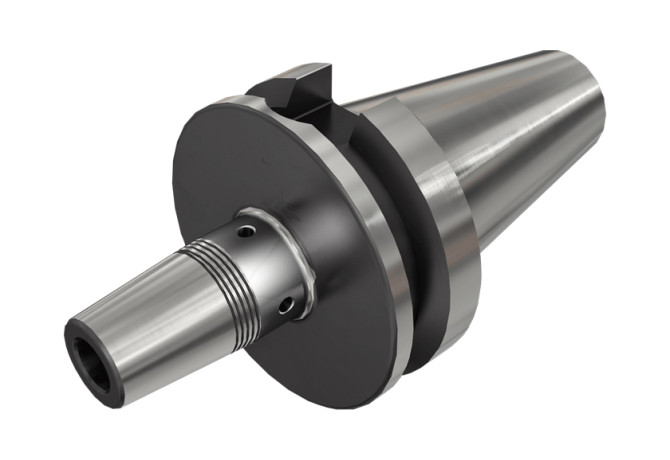

BT40 FC SRKIN18X90

Артикул: 4509889

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0180

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

63 mm

DIN

SKG04005195

FamilyProducts

Thermal Shrink Chucks with BT MAS-403 Face Contact AD Tapered Shanks

ID Technical product number

4509889

Interface codes

J6 / J61

ISO

SKG51C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

64 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0180

LOC-01 ISO

ZYL01G1800h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01800115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG51C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005195

LPR Protruding length

90 mm

Name Identifying order number

BT40 FC SRKIN18X90

OAL Overall length

156.4 mm

WT Weight of item

3 kg
