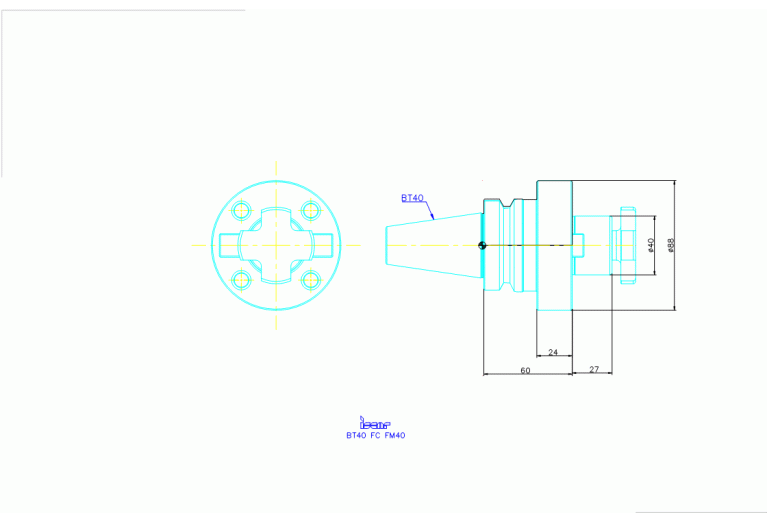

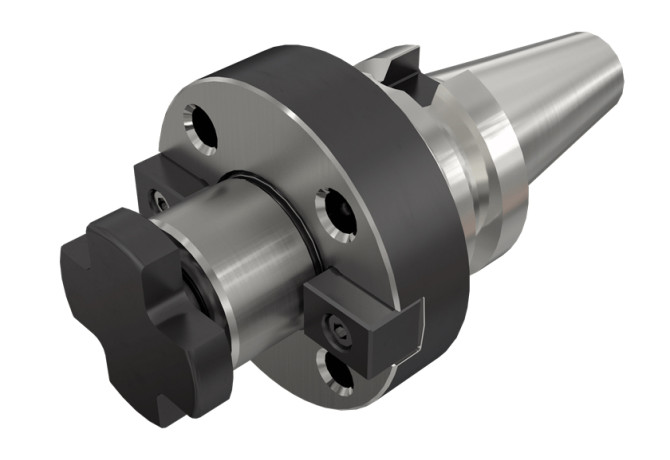

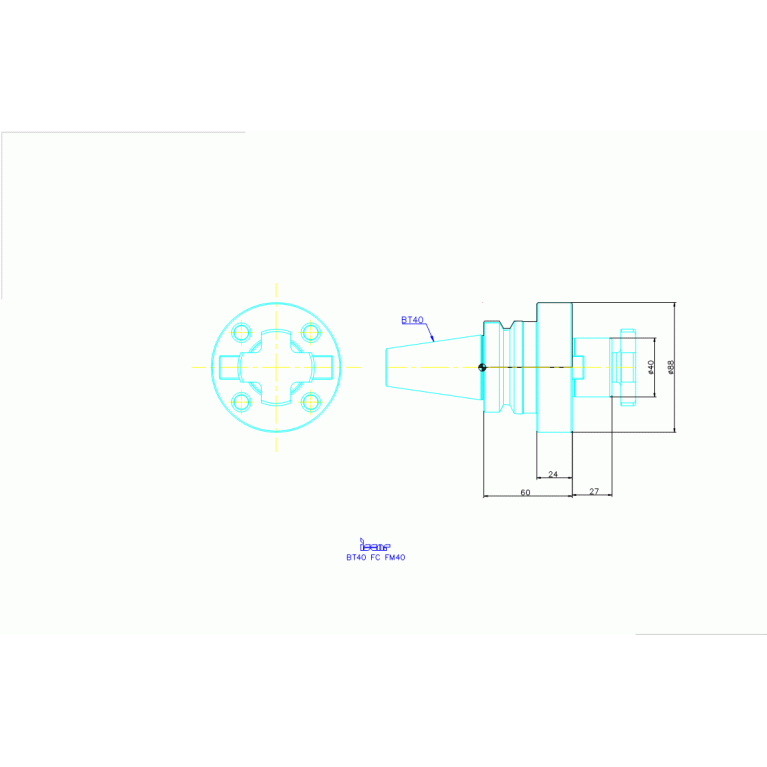

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric BT40 FC FM40

BT40 FC FM40

Артикул: 4509909

В наличии

В корзину

Описание

Характеристики

BD Body diameter

88 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

FDA

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

63 mm

DIN

SKG04005195

FamilyProducts

Face Mill Holders with BT MAS-403 Face Contact A/AD Tapered Shanks

ID Technical product number

4509909

Interface codes

J6 / J61

ISO

SKG51C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

23 mm

LF Functional length

60 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0400

LOC-01 ISO

FDA02G4000H$07

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA04000210

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG51C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005195

Name Identifying order number

BT40 FC FM40

OAL Overall length

153.4 mm

WT Weight of item

2.39 kg
