Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric ADJ DIN69871 50 D70

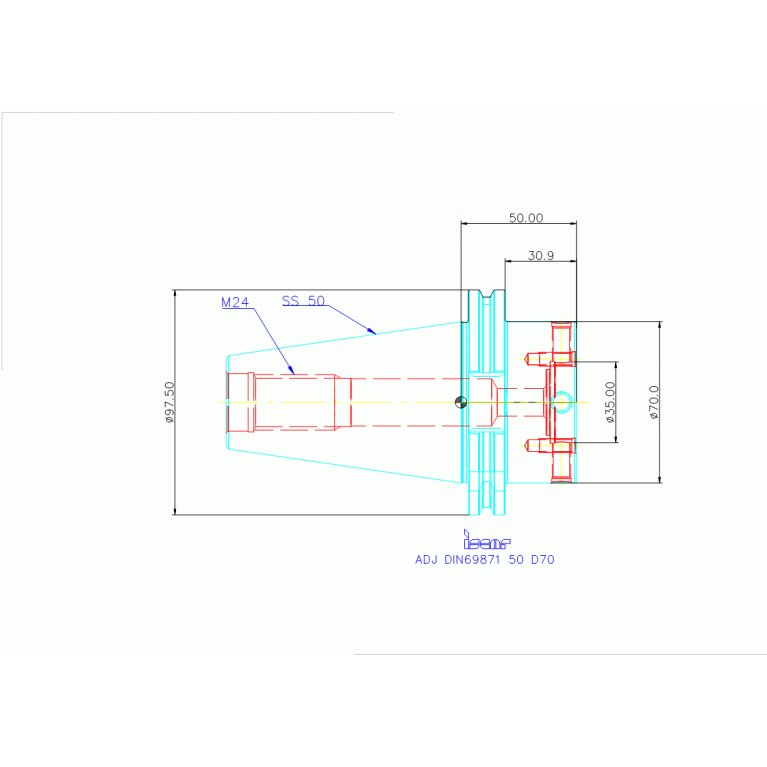

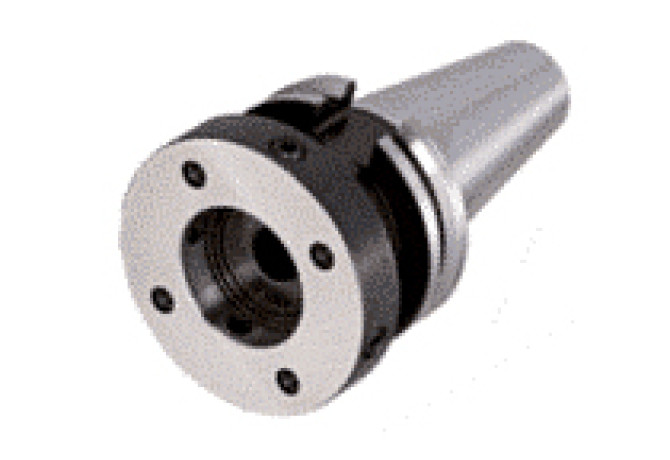

ADJ DIN69871 50 D70

Артикул: 4505986

В наличии

В корзину

Описание

Характеристики

BD Body diameter

70 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

AIF

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0350

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DF Flange diameter

97.5 mm

DIN

SKG05001195

FamilyProducts

FINEFIT Center Alignment Shank and Base with a DIN 69871 Form AD Taper Shank for Specially Tailored Toolholders

ID Technical product number

4505986

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

30.9 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-01 CCTWS Connection code type

AIF adjustable DIHART connection

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0350

LOC-01 ISO

AIF01C0350h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

AIF03500193

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

50 mm

Name Identifying order number

ADJ DIN69871 50 D70

OAL Overall length

151.75 mm

WT Weight of item

3.32 kg
