AC060-J40-T22-185

Артикул: 7975779

В наличии

В корзину

Описание

Характеристики

BD Body diameter

22 mm

BD Body diameter 2

30 mm

BD Body diameter 3

42.87 mm

CCFWS Form

CCSWS Style

CCTWS Type

SAW

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0220

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63 mm

DIN

SKG04005795

FamilyProducts

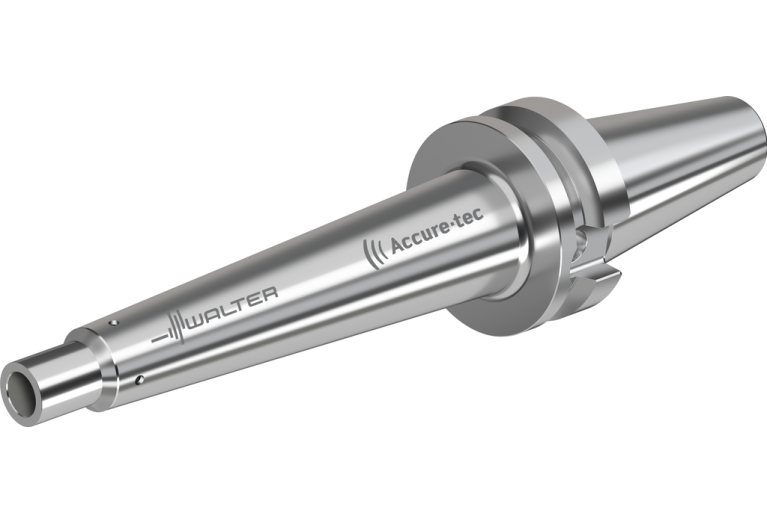

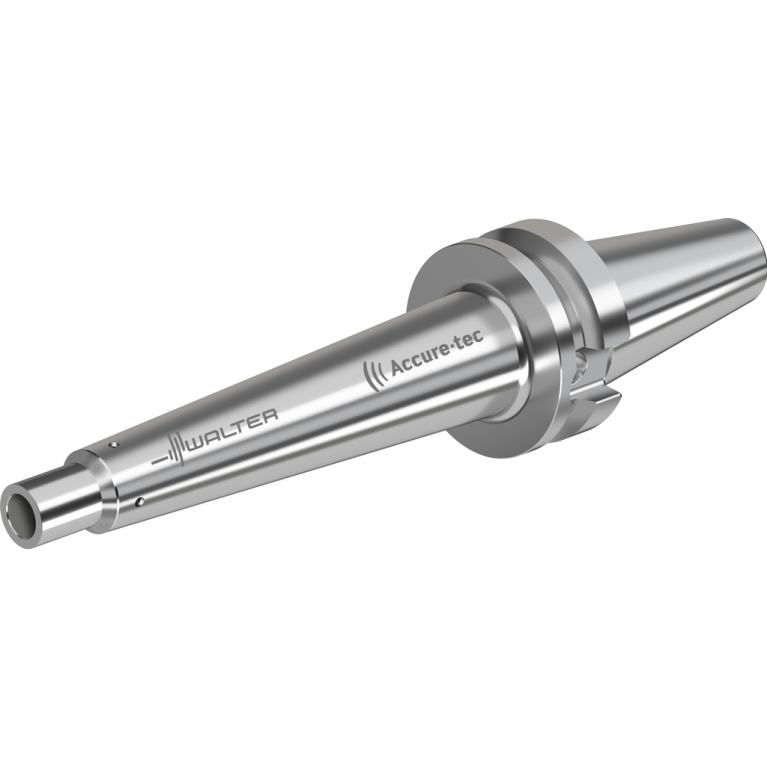

MAS-BT adaptor – vibration-damped AC060-J

ID Technical product number

7975779

Interface codes

J6 / J61

ISO

SKG57C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

19.5 mm

LB Length 2

24 mm

LB Length Body diameter 3

155 mm

LB Length Body diameter 4

158 mm

LF Functional length

185 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SAW Screw mounting WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0220

LOC-01 ISO

SAW01C0220****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAW02200195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

SKG57C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

LPR Protruding length

185 mm

LS Shank length

65.4 mm

Name Identifying order number

AC060-J40-T22-185

OAL Overall length

250.4 mm

RPMX Rotational speed maximum

9000 1/min

STDLET Standard letter to the standard number

STDNO Standard

MAS403-BT

THSZMS Connection thread nominal size machine side

M16

THSZWS Connection thread nominal size workpiece side

M16

WT Weight of item

2.2 kg
