Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric AB019-H63-P10-120

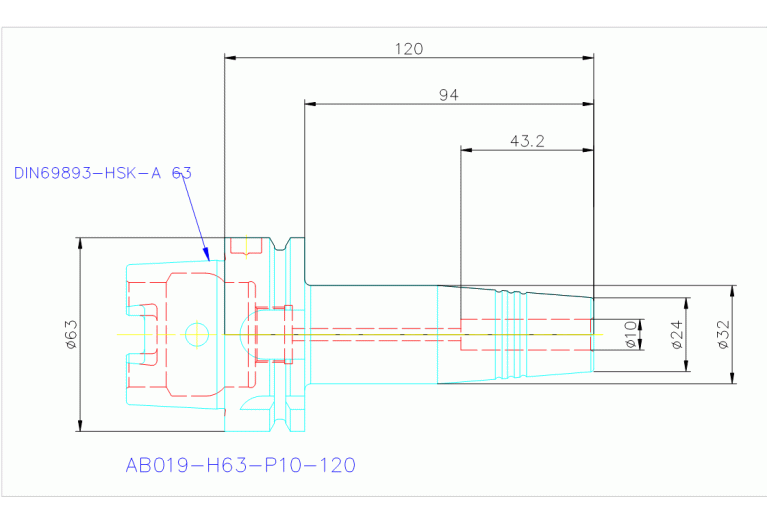

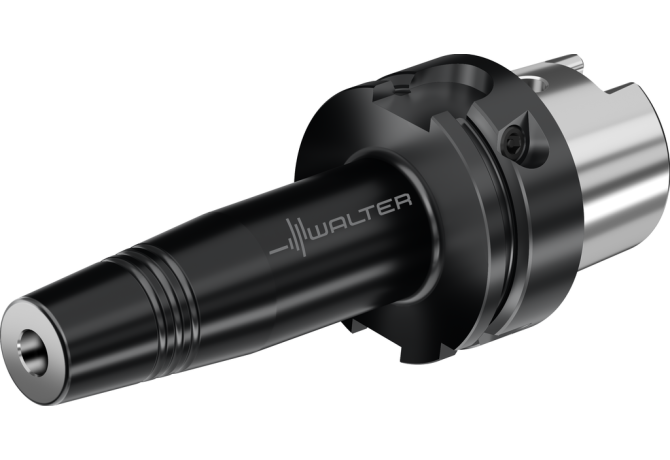

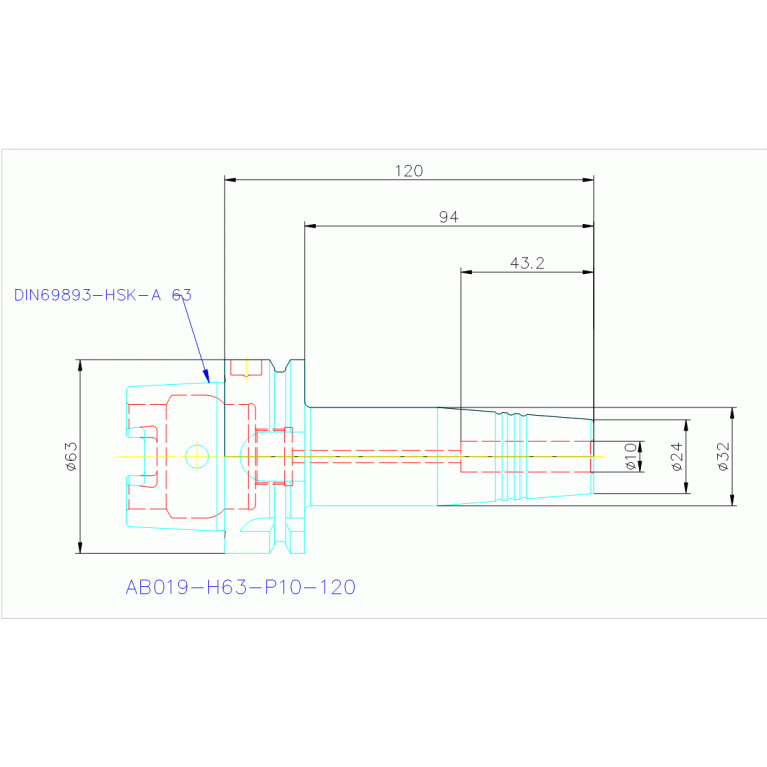

AB019-H63-P10-120

AB019-H63-P10-120 AB019-H63-P10-120 AB019-H63-P10-120 AB019-H63-P10-120

AB019-H63-P10-120

Walter
Артикул: 8156072
В наличии
В корзину
Описание
Характеристики

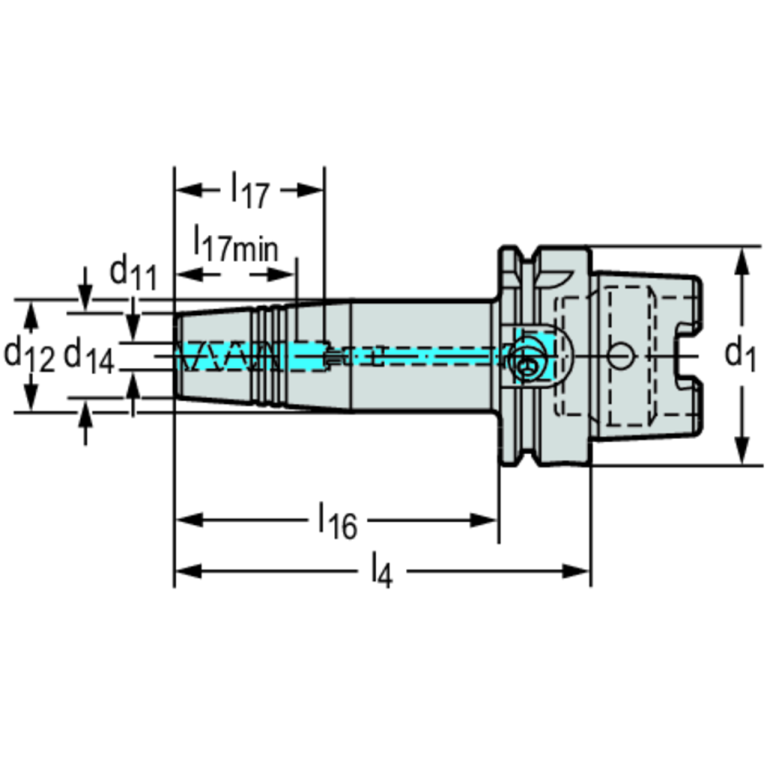

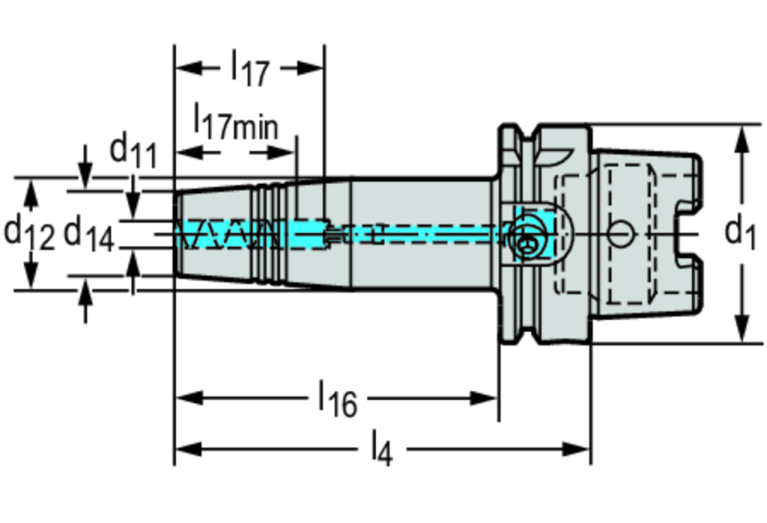

BD Body diameter
24 mm
BD Body diameter 2
32 mm
CCFWS Form
13
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts
DIN 69893-1 A slim hydraulic expansion chuck AB019-H
ID Technical product number
8156072
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
50.8 mm
LB Length 2
94 mm
LF Functional length
76.8 mm
LOC-01 CCFWS Form
13
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01 ISO
ZYL10G1000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01001315
LOC-02 CCFWS Form
13
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0100
LOC-02 DCONWS Diameter
10 mm
LOC-02 ISO
SZC02G1000****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC01000215
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
120 mm
LS Shank length
32 mm
LSCN Clamping length minimum
33.2 mm
LSCX Clamping length maximum
43.2 mm
Name Identifying order number
AB019-H63-P10-120
OAL Overall length
152 mm
RPMX Rotational speed maximum
30000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
1.1 kg
