Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric AB019-H100-P06-085

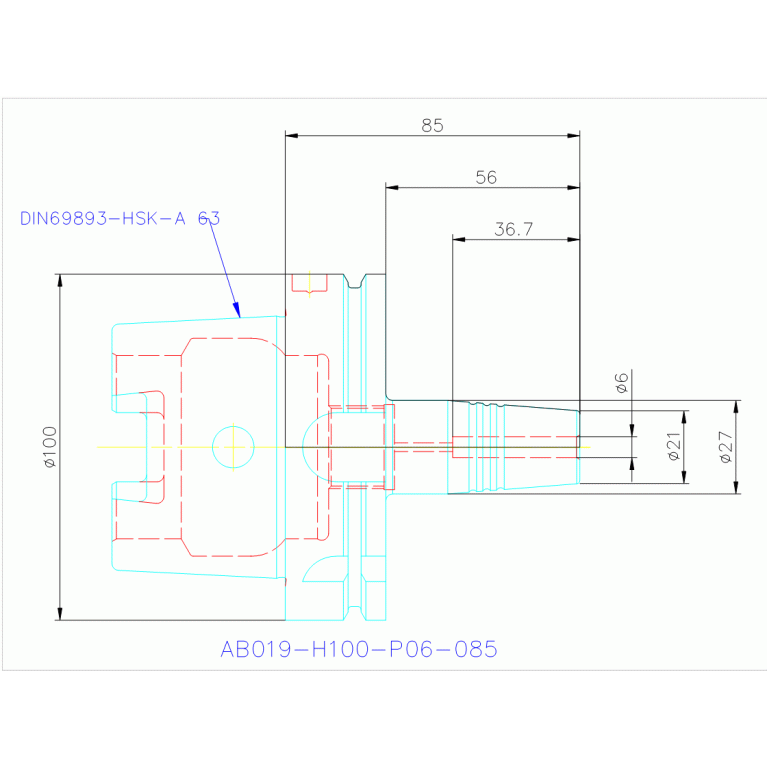

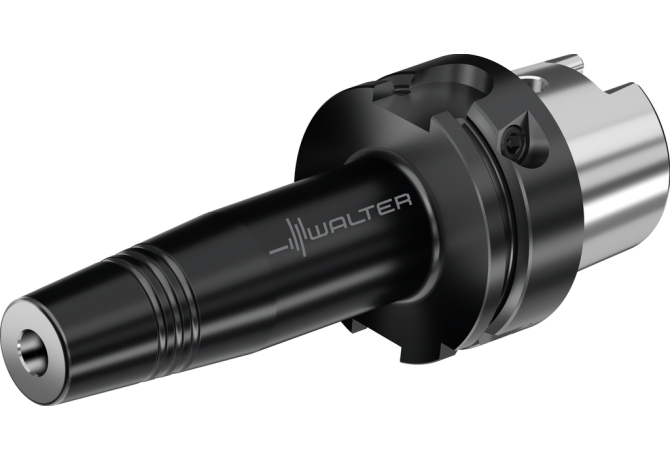

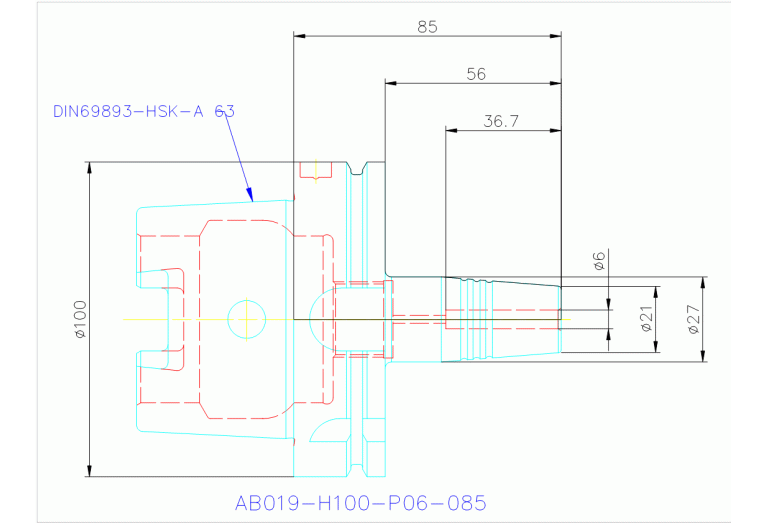

AB019-H100-P06-085

AB019-H100-P06-085 AB019-H100-P06-085 AB019-H100-P06-085 AB019-H100-P06-085

AB019-H100-P06-085

Walter
Артикул: 8156077
В наличии
В корзину
Описание
Характеристики

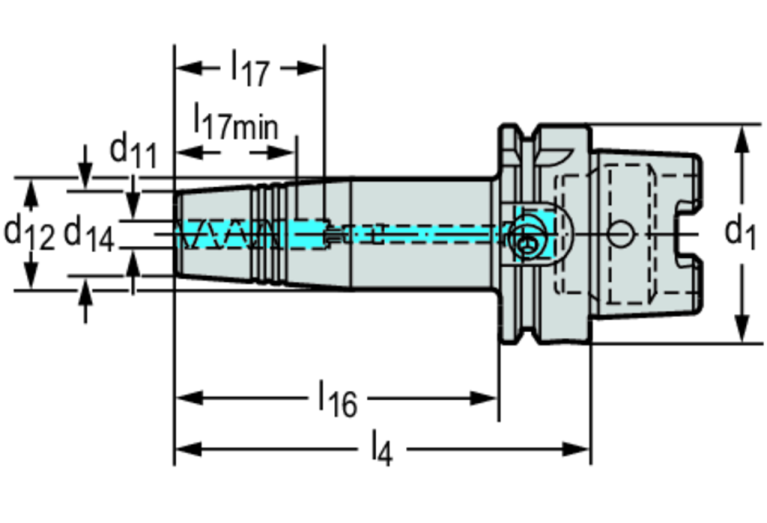

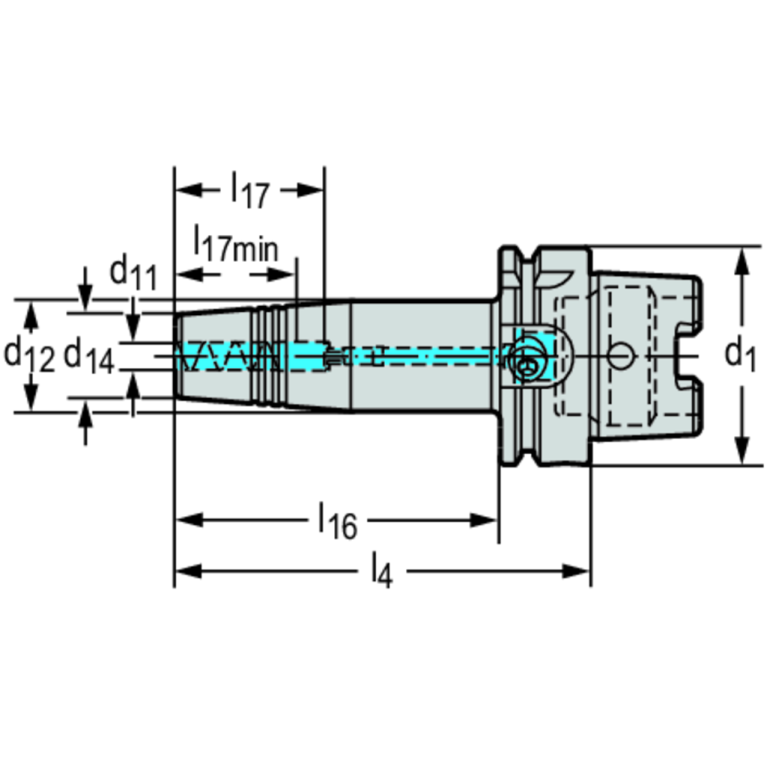

BD Body diameter
21 mm
BD Body diameter 2
27 mm
CCFWS Form
13
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0060
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
DIN 69893-1 A slim hydraulic expansion chuck AB019-H
ID Technical product number
8156077
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
38.1 mm
LB Length 2
56 mm
LF Functional length
48.3 mm
LOC-01 CCFWS Form
13
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01 ISO
ZYL10F6000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00601315
LOC-02 CCFWS Form
13
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0060
LOC-02 DCONWS Diameter
6 mm
LOC-02 ISO
SZC02F6000****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC00600215
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
85 mm
LS Shank length
50 mm
LSCN Clamping length minimum
26.7 mm
LSCX Clamping length maximum
36.7 mm
Name Identifying order number
AB019-H100-P06-085
OAL Overall length
135 mm
RPMX Rotational speed maximum
50000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
2.2 kg
