Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric A3001-H100T-QL60-421

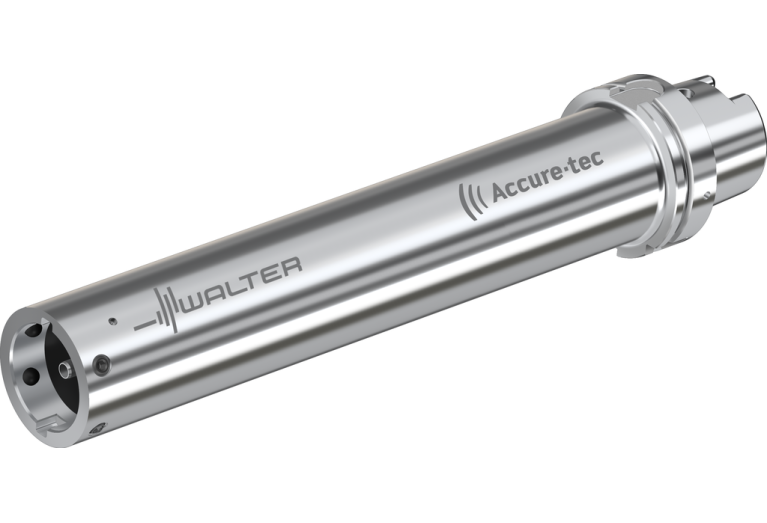

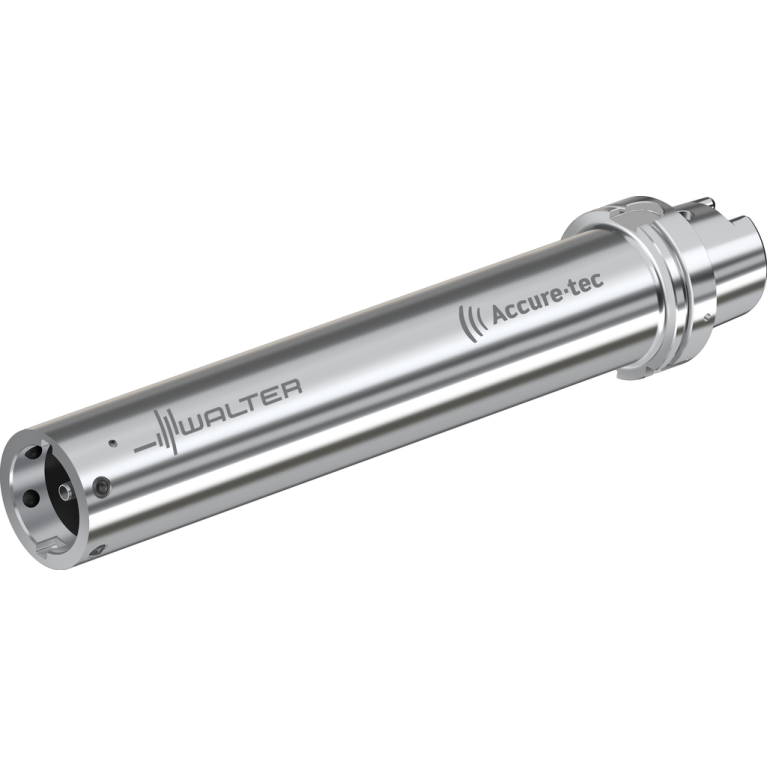

A3001-H100T-QL60-421

A3001-H100T-QL60-421 A3001-H100T-QL60-421 A3001-H100T-QL60-421

A3001-H100T-QL60-421

Walter
Артикул: 7956091
В наличии
В корзину
Описание
Характеристики

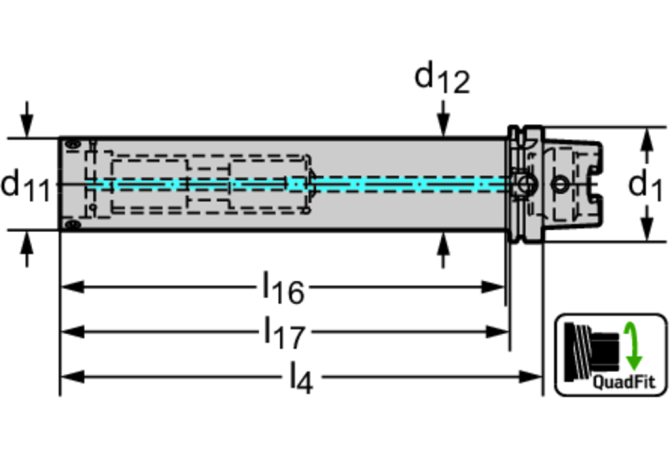

BD Body diameter
60 mm
CCFWS Form
03
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
9
CNSC Coolant entry style code
3 - With Coolant entry, axial concentric and radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0600
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
100 mm
DIN
HSK10000795
FamilyProducts
HSK-T adaptor – vibration damped A3001-HSK-T
ID Technical product number
7956091
Interface codes
J6 / J61
ISO
HSK07C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
392 mm
LB Length 2
387 mm
LF Functional length
421 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0600
LOC-01 ISO
SAW03C0600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW06000395
LOC-03 CCFMS Form
07
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03 ISO
HSK07C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000795
LPR Protruding length
421 mm
LS Shank length
50 mm
Name Identifying order number
A3001-H100T-QL60-421
OAL Overall length
471 mm
RPMX Rotational speed maximum
3000 1/min
STDLET Standard letter to the standard number
T
STDNO Standard
ISO12164-3
WT Weight of item
11.8 kg
