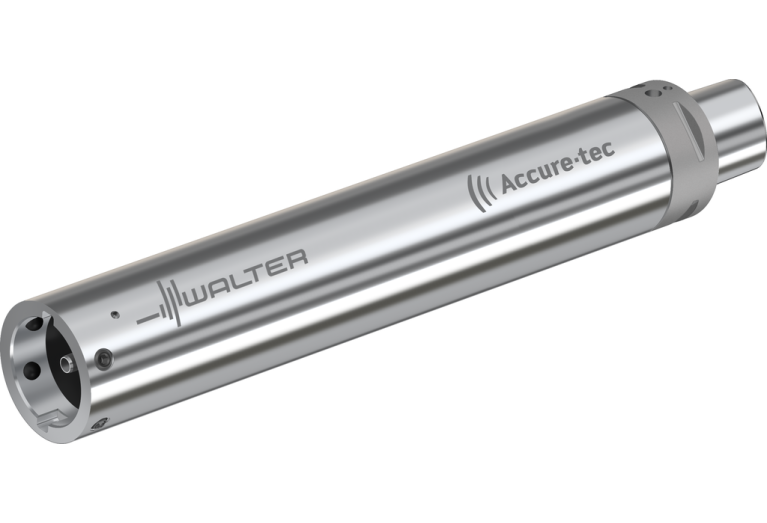

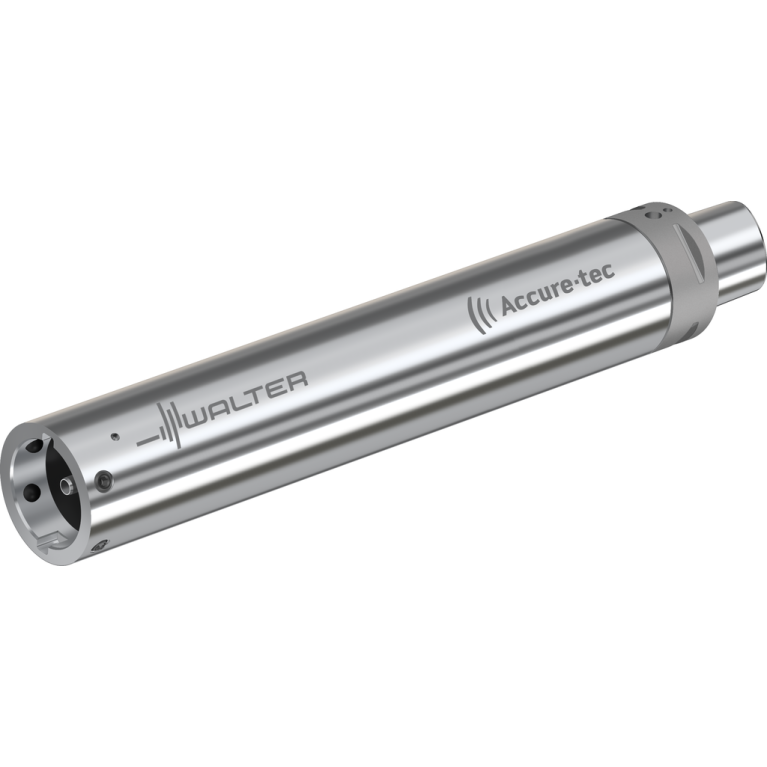

Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric A3001-C6-QL60-421

A3001-C6-QL60-421

Артикул: 7956084

В наличии

В корзину

Описание

Характеристики

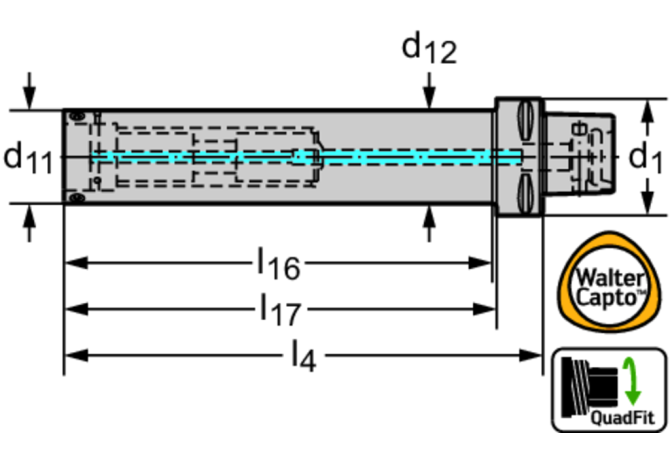

BD Body diameter

60 mm

CCFWS Form

CCSWS Style

CCTWS Type

SAW

CCUWS Unit base

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0600

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300395

FamilyProducts

Walter Capto TM Adaptor – vibration damped A3001-C

ID Technical product number

7956084

Interface codes

J6 / J61

ISO

CCS03C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

396 mm

LB Length 2

393 mm

LF Functional length

421 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SAW Screw mounting WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0600

LOC-01 ISO

SAW03C0600****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAW06000395

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS03C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300395

LPR Protruding length

421 mm

LS Shank length

38 mm

Name Identifying order number

A3001-C6-QL60-421

OAL Overall length

459 mm

RPMX Rotational speed maximum

3000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

10.6 kg
