Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric HA10-C3-032-080

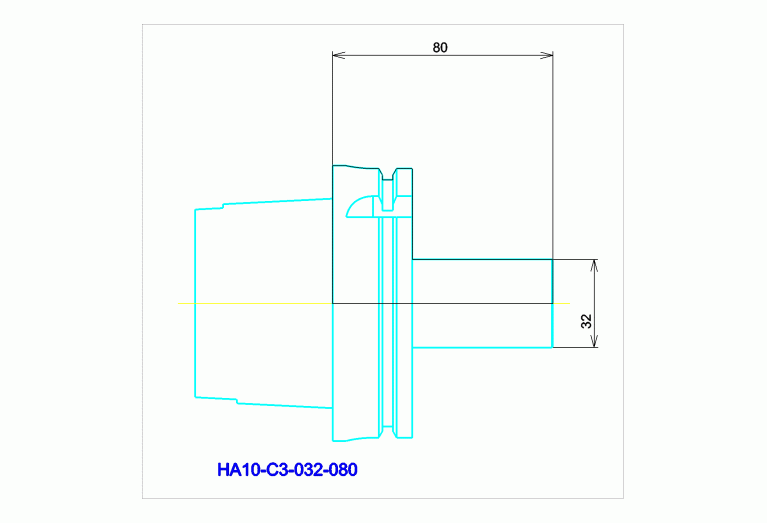

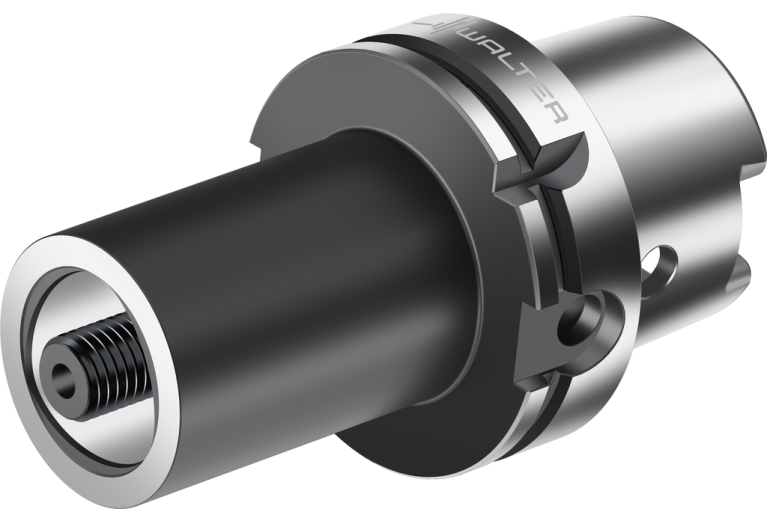

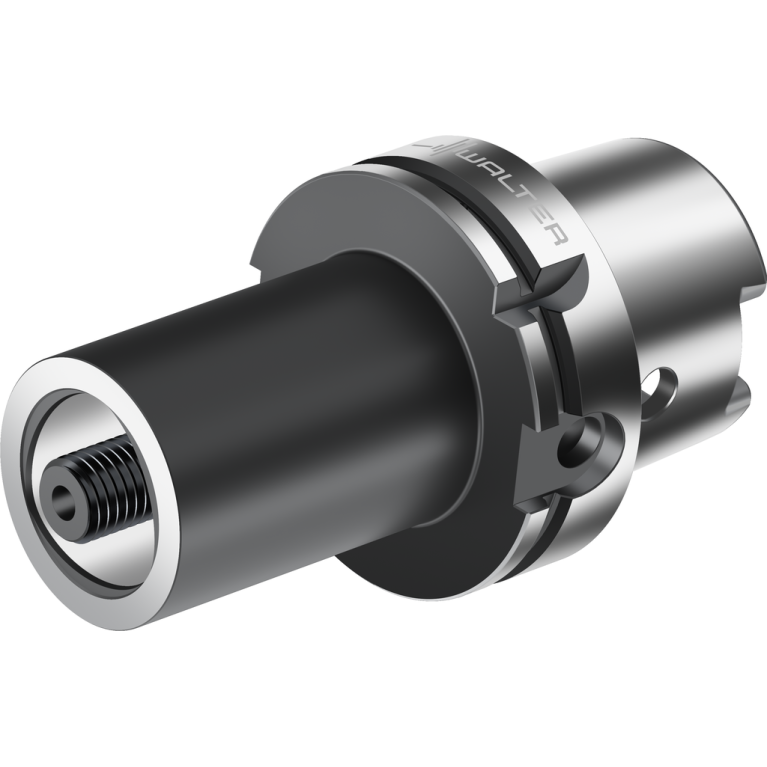

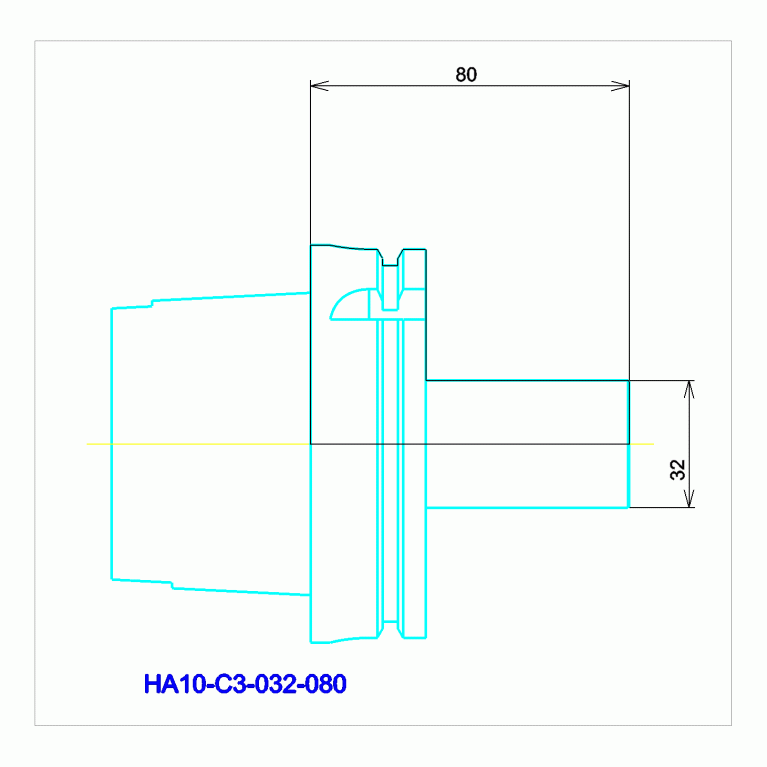

HA10-C3-032-080

HA10-C3-032-080 HA10-C3-032-080 HA10-C3-032-080 HA10-C3-032-080

HA10-C3-032-080

Walter
Артикул: 8463581
В наличии
В корзину
Описание
Характеристики
BD Body diameter
32 mm
CCFWS Form
03
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
HSK DIN 69893-1 A master AB584-HSK-MASTER
HAND Cutting direction
N - Neutral
ID Technical product number
8463581
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
51 mm
LF Functional length
80 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0320
LOC-01 ISO
CCS03C0320****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS03200395
LOC-02 CCFWS Form
03
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0320
LOC-02 ISO
CCS01C0320****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS03200195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
80 mm
LS Shank length
50 mm
Name Identifying order number
HA10-C3-032-080
OAL Overall length
130 mm
RPMX Rotational speed maximum
12500 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO26623-2
WT Weight of item
2.4 kg
