Главная Каталог продукции Toolunited 12 401-01 - Converter, rotationally symmetric C3-A391.05C-19 030

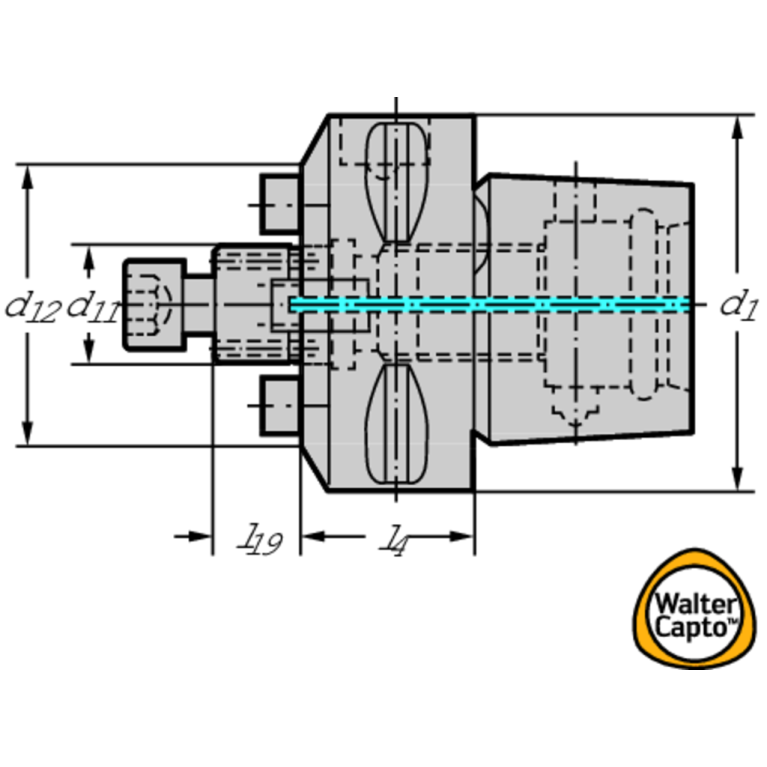

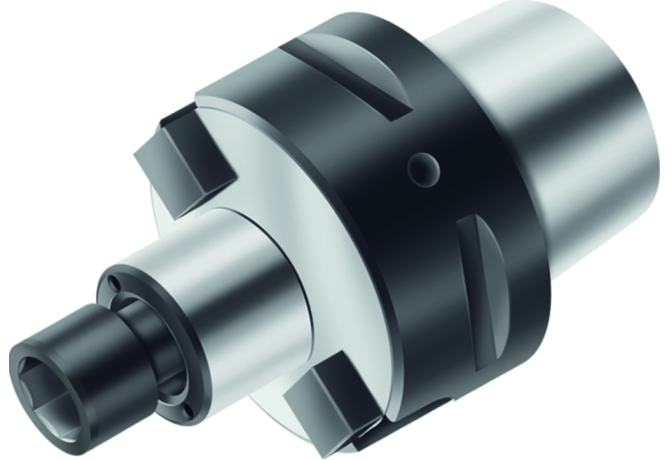

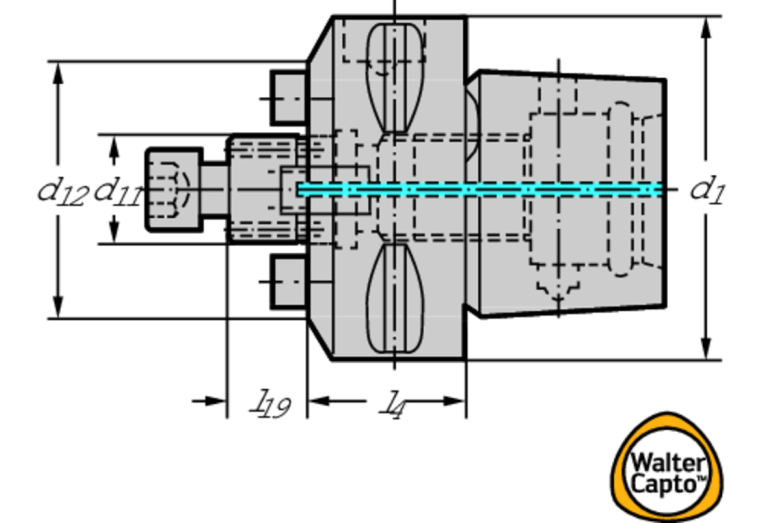

C3-A391.05C-19 030

C3-A391.05C-19 030 C3-A391.05C-19 030 C3-A391.05C-19 030

C3-A391.05C-19 030

Walter
Артикул: 8331868
В наличии
В корзину
Описание
Характеристики
BD Body diameter
40 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0750
DCONWS Diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
FamilyProducts
Shell mill adaptor AK155.8.C
ID Technical product number
8331868
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
15 mm
LF Functional length
30 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
3 Inch with coolant
LOC-01 CZCWS Size code
0750
LOC-01 DCONWS Diameter
19.05 mm
LOC-01 ISO
FDA12R7500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA07501230
LOC-02 CCFWS Form
12
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
3 Inch with coolant
LOC-02 CZCWS Size code
0750
LOC-02 DCONWS Diameter
19.05 mm
LOC-02 ISO
FDA22R7500****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA07502230
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
30 mm
LS Shank length
18 mm
Name Identifying order number
C3-A391.05C-19 030
OAL Overall length
67 mm
RPMX Rotational speed maximum
55000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.34 kg
