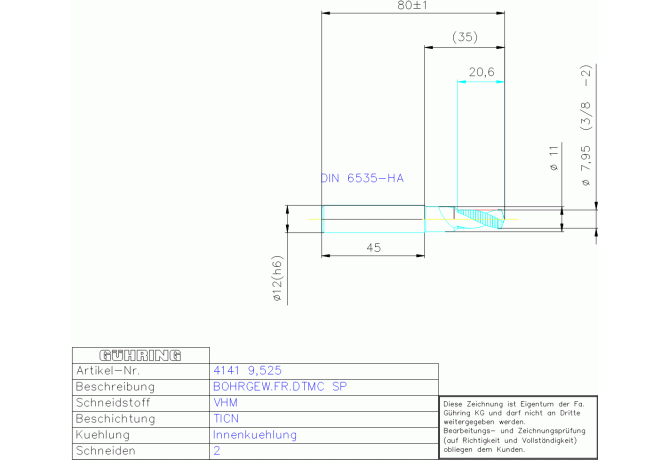

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 4141 9.525

4141 9.525

4141 9.525 4141 9.525

4141 9.525

Gühring
Артикул: 9041410095250
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
18 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TICN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
N
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
8.5 mm
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
7.95 mm
Delivery state valid from
12/1/2021
DIN
ZYL01200115
DN Neck diameter
11 mm
FamilyProducts
VHM TICN KI-BOHRGEW,FRA.2XD 3/8 -24 UNF
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
49.018 mm
GAMF Rake angle radial
27 Degree
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HC-K/P
HAND Cutting direction
R - Right
ID Technical product number
9041410095250
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
84.8 mm
LH Head length
20.6 mm
LN Neck length
20.6 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200115
LPR Protruding length
35 mm
LS Shank length
45 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
4141 9.525
OAL Overall length
80 mm
PRFA Profile included angle
140 Degree
STDNO Standard
WN
TCDCONMS ISO-tolerance class shank diameter
h6
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNF
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.102 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
