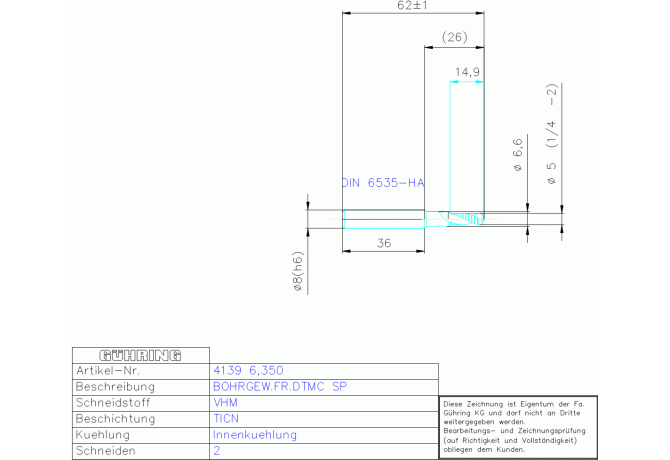

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 4139 6.350

4139 6.350

4139 6.350 4139 6.350

4139 6.350

Gühring
Артикул: 9041390063500
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
12.7 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
N
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
5.1 mm
DCONMSLD Shank diameter lower limit
-0.009 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
5 mm
Delivery state valid from
12/1/2021
DIN
ZYL00800115
DN Neck diameter
6.6 mm
FamilyProducts
VHM TICN KI-BOHRGEW,FRA.2XD 1/4 -20 UNC
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
30.829 mm
GAMF Rake angle radial
27 Degree
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HC-K/P
HAND Cutting direction
R - Right
ID Technical product number
9041390063500
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
65.2 mm
LH Head length
14.9 mm
LN Neck length
14.9 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800115
LPR Protruding length
26 mm
LS Shank length
36 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
4139 6.350
OAL Overall length
62 mm
PRFA Profile included angle
140 Degree
STDNO Standard
WN
TCDCONMS ISO-tolerance class shank diameter
h6
TDIN Thread diameter nominal inch
0.25 in
THFT Thread form type
UNC
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.034 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
