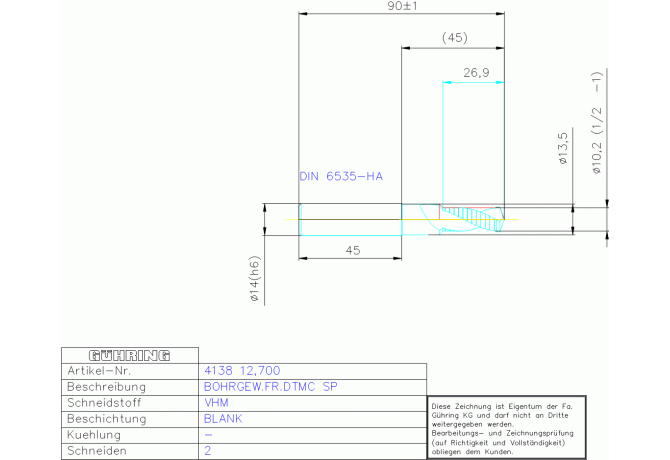

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 4138 12.700

4138 12.700

4138 12.700 4138 12.700

4138 12.700

Gühring
Артикул: 9041380127000
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
23.4 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
N
CXSC Coolant exit style code
0 - Without coolant exit
DCD Drilling diameter
10.8 mm
DCONMSLD Shank diameter lower limit
-0.011 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
10.2 mm
Delivery state valid from
12/1/2021
DIN
ZYL01400105
DN Neck diameter
13.5 mm
FamilyProducts
VH BLANK BOHRGEW,FRA.2XD 1/2 -13 UNC
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
62.891 mm
GAMF Rake angle radial
27 Degree
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HF-K
HAND Cutting direction
R - Right
ID Technical product number
9041380127000
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
90 mm
LH Head length
26.9 mm
LN Neck length
26.9 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01400105
LPR Protruding length
45 mm
LS Shank length
45 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
4138 12.700
OAL Overall length
90 mm
PRFA Profile included angle
140 Degree
STDNO Standard
WN
TCDCONMS ISO-tolerance class shank diameter
h6
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNC
TP Thread pitch
1.954 mm
TPI Threads per inch
13 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.151 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
