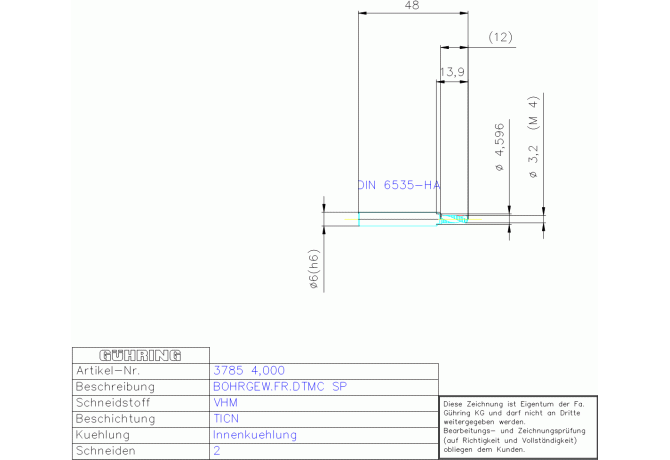

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 3785 4.000

3785 4.000

3785 4.000 3785 4.000

3785 4.000

Gühring
Артикул: 9037850040000
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
9.8 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TICN
COMPC Company code
GG - Gühring
CRCLMFG Chip removal class mfg
N
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
3.3 mm
DCONMSLD Shank diameter lower limit
-0.008 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
3.2 mm
Delivery state valid from
12/1/2021
DIN
ZYL00600115
DN Neck diameter
4.5 mm
FamilyProducts
VHM C KI-BOHRGEW.FRA.2,5XD M 4
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
19.7 mm
GAMF Rake angle radial
27 Degree
GAMP Rake angle axial
5 Degree
GRD2ND Standard designation of the grade 2nd application
VHM
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
HC-K/P
HAND Cutting direction
R - Right
ID Technical product number
9037850040000
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
48 mm
LH Head length
11.1 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LPR Protruding length
12 mm
LS Shank length
36 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
3785 4.000
OAL Overall length
48 mm
PRFA Profile included angle
140 Degree
STDNO Standard
WN
TCDCONMS ISO-tolerance class shank diameter
h6
TD Thread diameter
4 mm
THFT Thread form type
M
TP Thread pitch
0.7 mm
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.016 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
