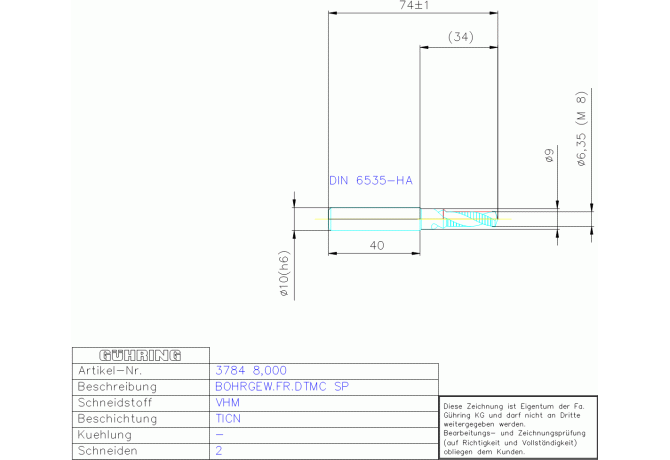

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 3784 8.000

3784 8.000

Артикул: 9037840080000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TICN

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCD Drilling diameter

6.8 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.35 mm

Delivery state valid from

12/1/2021

DIN

ZYL01000105

DN Neck diameter

9 mm

FamilyProducts

VHM TICN BOHRGEW,FRAESER 2,5XD M 8

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

39.152 mm

GAMF Rake angle radial

27 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9037840080000

Interface codes

J6 /

ISYC Subclass

303-11 - Thread end mill with drilling part

LF Functional length

74 mm

LH Head length

22.5 mm

LN Neck length

22.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

34 mm

LS Shank length

40 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

3784 8.000

OAL Overall length

74 mm

PRFA Profile included angle

140 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

8 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

FSB - Thrilling (drilling & threading)

WT Weight of item

0.057 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
