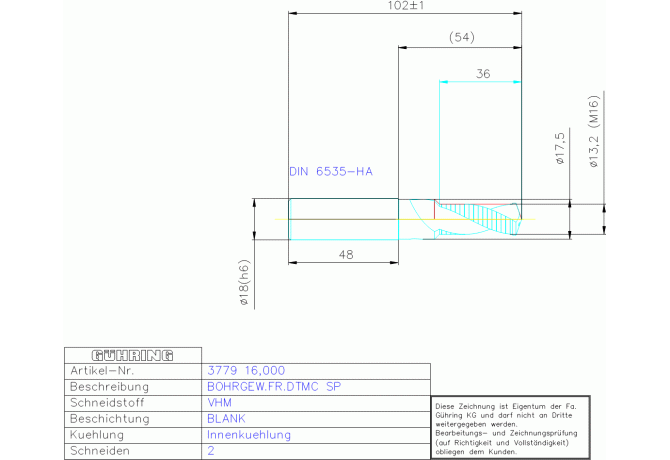

Главная Каталог продукции Toolunited 12 303-11 - Thread end mill with drilling part 3779 16.000

3779 16.000

3779 16.000

Gühring

Артикул: 9037790160000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

N

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCD Drilling diameter

14 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

13.2 mm

Delivery state valid from

12/1/2021

DIN

ZYL01800115

DN Neck diameter

17.5 mm

FamilyProducts

VHM BLANK KI-BOHRGEW,FRA.2,0XD M16

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

81.388 mm

GAMF Rake angle radial

27 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9037790160000

Interface codes

J6 /

ISYC Subclass

303-11 - Thread end mill with drilling part

LF Functional length

102 mm

LH Head length

36 mm

LN Neck length

36 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800115

LPR Protruding length

54 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

3779 16.000

OAL Overall length

102 mm

PRFA Profile included angle

140 Degree

STDNO Standard

WN

TCDCONMS ISO-tolerance class shank diameter

h6

TD Thread diameter

16 mm

THFT Thread form type

M

TP Thread pitch

2 mm

Working process

FSB - Thrilling (drilling & threading)

WT Weight of item

0.258 kg

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
