MP3CD1200

MP3CD1200 MP3CD1200

MP3CD1200

Mitsubishi Materials
Артикул: 22911339
В наличии
В корзину
Описание
Характеристики

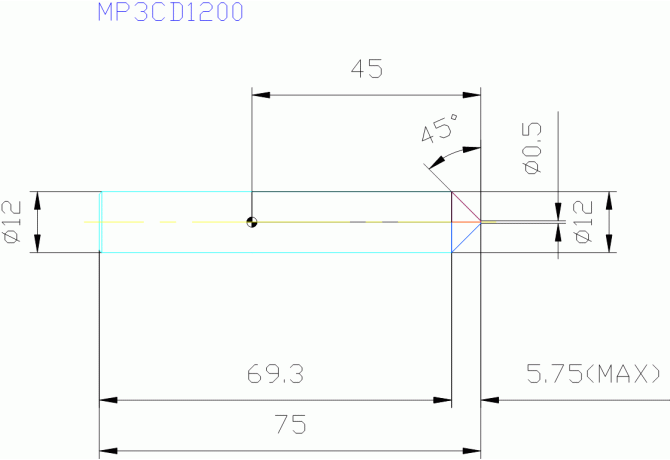

APMX Depth of cut maximum
5.75 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
0.5 mm
DCX Cutting diameter maximum
12 mm
Delivery state valid from
1/1/2023
DIN
ZYL01200105
DN Neck diameter
12 mm
F71 Number of corner designs
1
FamilyProducts
MP3CD1200
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
22911339
Interface codes
J6 / J61
ISO
ZYL01G1200h$06
ISYC Subclass
303-03 - Angular end mill (V-groove)
KAPR Tool cutting edge angle
45 Degree
LF Functional length
75 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G1200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
45 mm
LS Shank length
69.3 mm
Name Identifying order number
MP3CD1200
OAL Overall length
75 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
