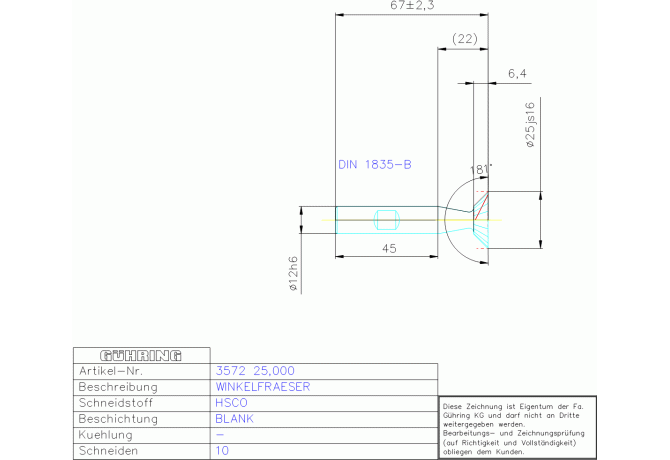

Главная Каталог продукции Toolunited 12 303-04 - Angular end mill (V-groove) 3572 25.000

3572 25.000

Артикул: 9035720250000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.3 mm

AZ Plunge depth maximum

1.8 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

25 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

Delivery state valid from

12/1/2021

DIN

ZYL01201005

DN Neck diameter

7 mm

F71 Number of corner designs

FamilyProducts

HSCO WINKELFRAESER 25,000 DIN 1833RH

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9035720250000

Interface codes

J6 /

ISYC Subclass

303-04 - Angular end mill (V-groove)

KAPR Tool cutting edge angle

135 Degree

LF Functional length

44.5 mm

LN Neck length

22 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

22 mm

LS Shank length

45 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3572 25.000

OAL Overall length

67 mm

RMPX Ramping angle maximum

14.43 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN1833

TCDCONMS ISO-tolerance class shank diameter

Working process

FNU - Groove milling

WT Weight of item

0.059 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
