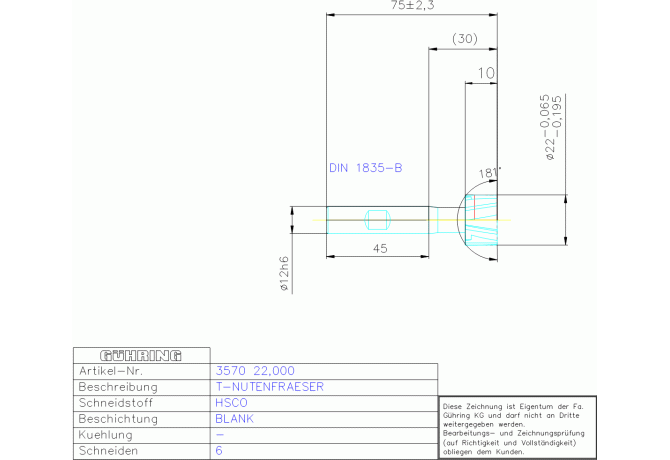

Главная Каталог продукции Toolunited 12 303-05 - T-slot end mill 3570 22.000

3570 22.000

Артикул: 9035700220000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

10 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

22 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01201005

DN Neck diameter

11 mm

FamilyProducts

HSCO T-NUTENFRAESER DIN851-AB RN 22X10

FHA Flute helix angle

10 Degree

FHH Flute helix hand

N - Hand of helix neutral

FHP Flute helix pitch

400 mm

GAMF Rake angle radial

10 Degree

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9035700220000

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LF Functional length

52.5 mm

LN Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

30 mm

LS Shank length

45 mm

Name Identifying order number

3570 22.000

OAL Overall length

75 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN851

TCDCONMS ISO-tolerance class shank diameter

Working process

FNU - Groove milling

WT Weight of item

0.074 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
