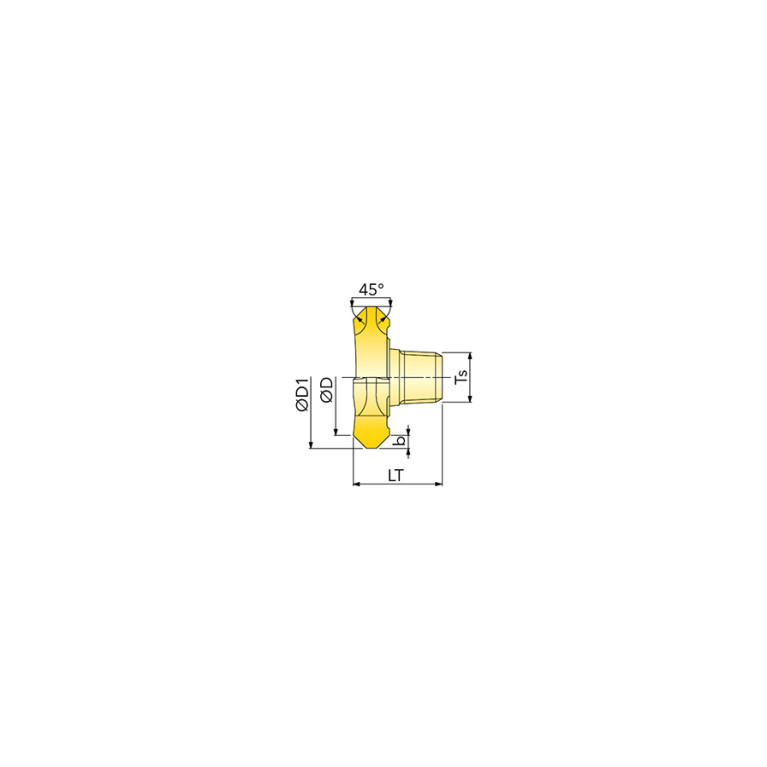

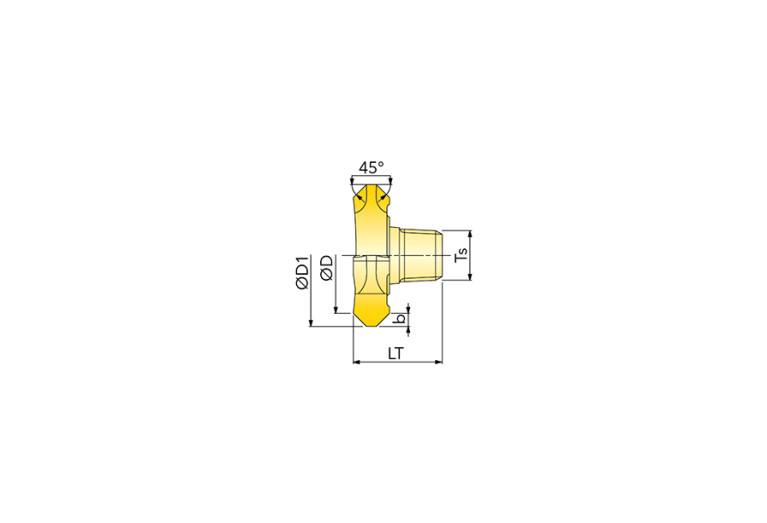

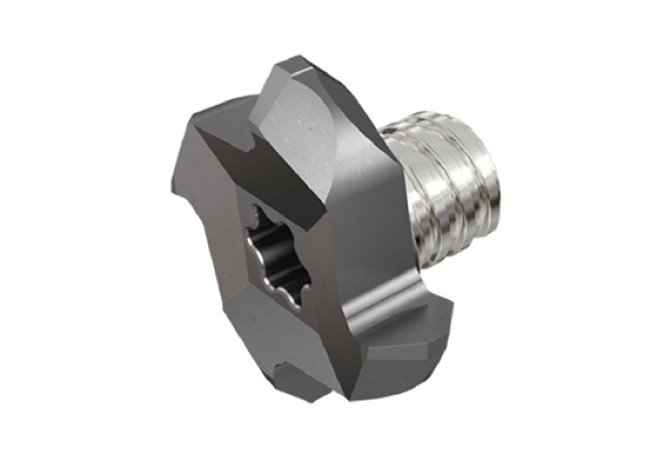

Главная Каталог продукции Toolunited 12 303-05 - T-slot end mill 18N27798TRRK40 IN2005

18N27798TRRK40 IN2005

Артикул: 2931999

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

19.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

SAI01000105

FamilyProducts

Slot mill for chamfering 45° Z=4 (18N)

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

2931999

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000105

Materials

P,M,K

Name Identifying order number

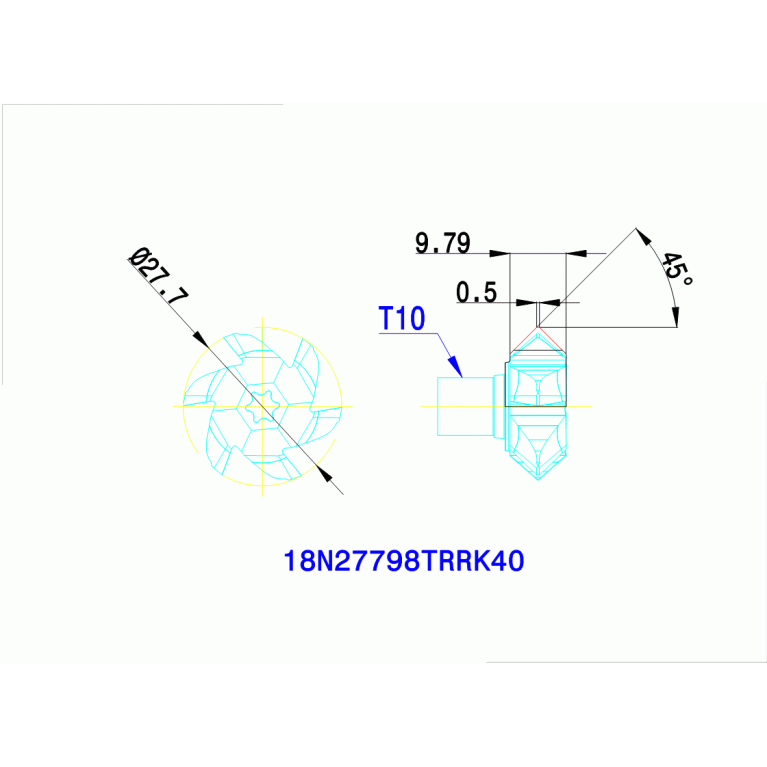

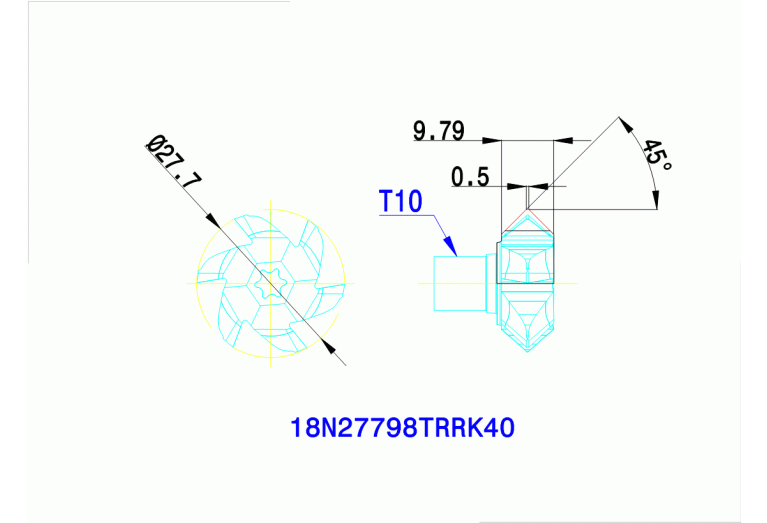

18N27798TRRK40 IN2005

OAL Overall length

11.8 mm

THSZMS Connection thread nominal size machine side

T10

Working process

FEC - Square shoulder milling

WT Weight of item

0.056 kg

ZEFP Peripheral effective cutting edge count
