Главная Каталог продукции Toolunited 12 303-05 - T-slot end mill 17T21720T8RP02 IN2005

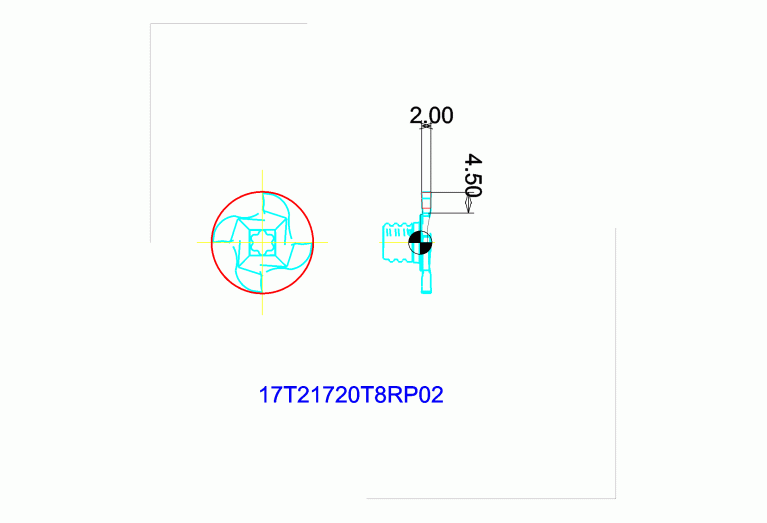

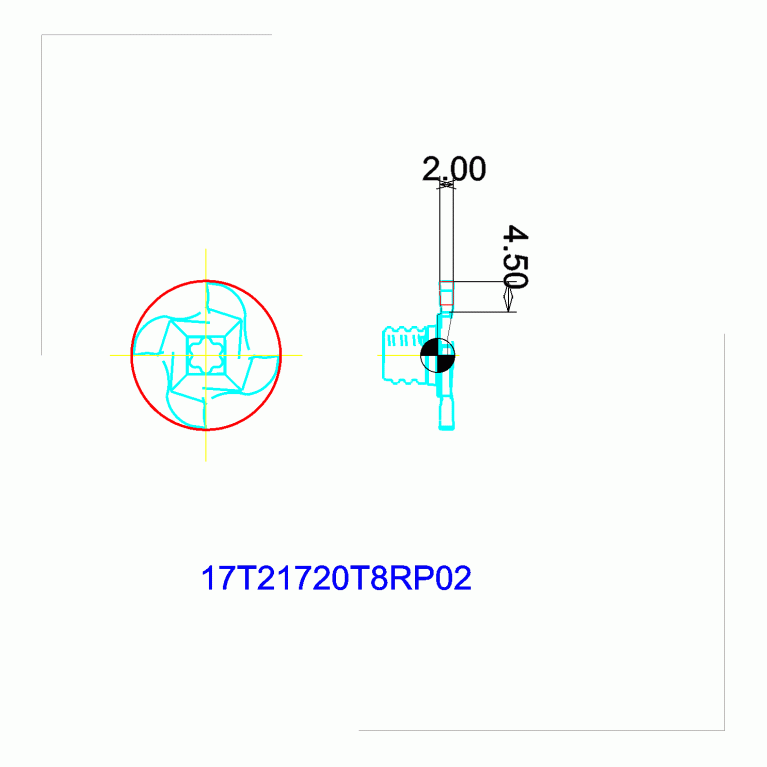

17T21720T8RP02 IN2005

Артикул: 2931892

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

21.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

SAI00800105

DN Neck diameter

12.7 mm

FamilyProducts

T-Slot cutter for O-ring grooves Z=4

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

2931892

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800105

Materials

P,M,K

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

17T21720T8RP02 IN2005

OAL Overall length

8 mm

RE Corner radius

0.2 mm

THSZMS Connection thread nominal size machine side

T08

Working process

FNU - Groove milling

WT Weight of item

0.01 kg

ZEFP Peripheral effective cutting edge count
