17T21717T8RK01 IN2005
17T21717T8RK01 IN2005
Артикул:
2931876
В наличии
Характеристики

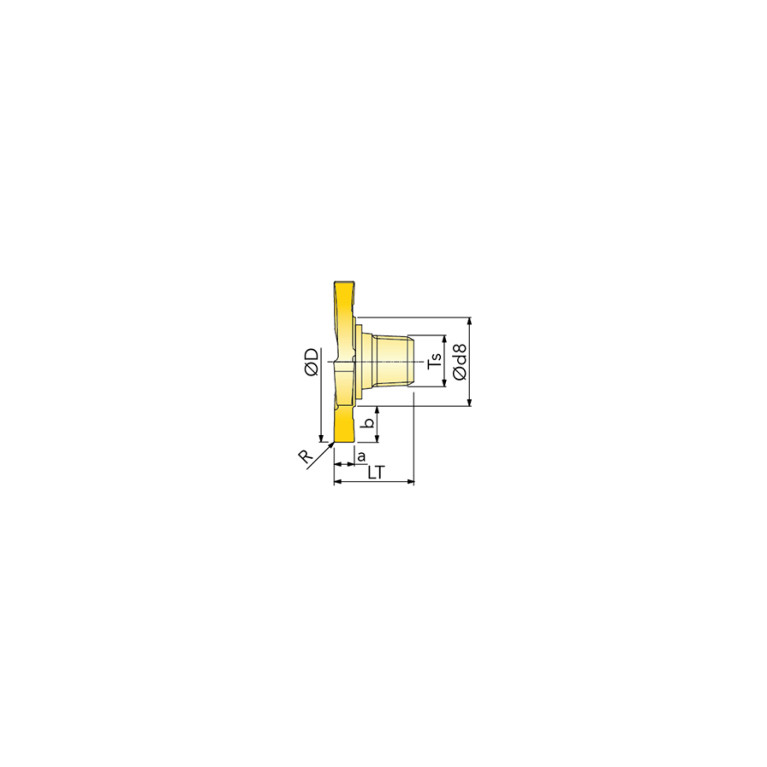

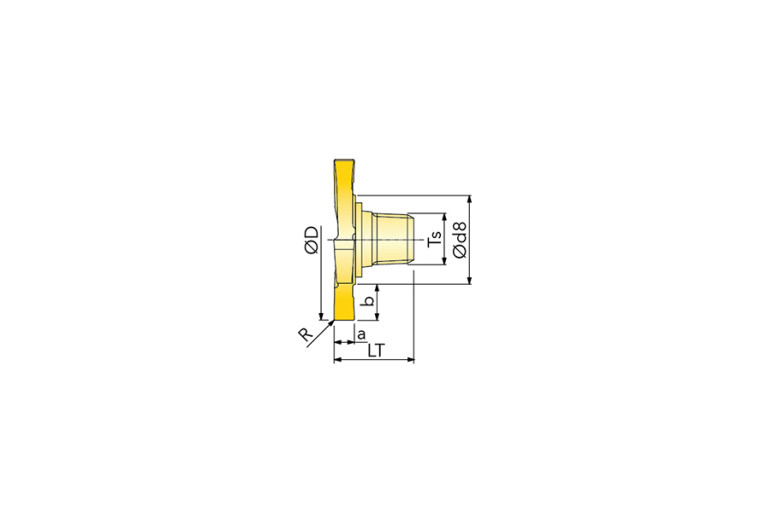

APMX Depth of cut maximum
1.7 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAIN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
21.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
SAI00800105
DN Neck diameter
12.7 mm
FamilyProducts

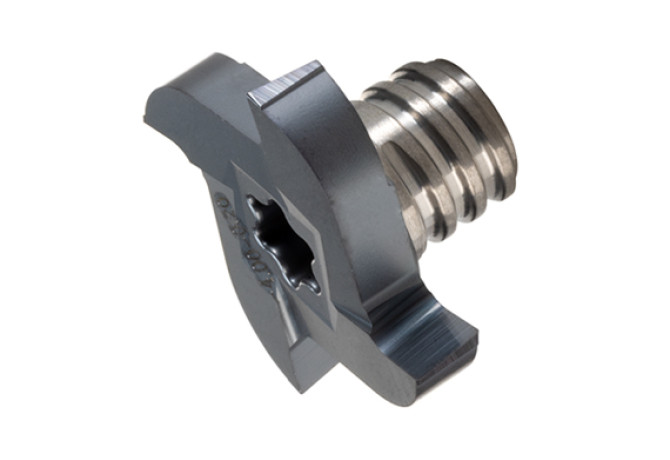

T-Slot cutter for O-ring grooves Z=4
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
HC-K40
GRD3RD Standard designation of the grade 3rd application
HC-P30
GRDMFG Grade manufacturers designation
IN2005
GRDPRIO Standard designation of the grade main application
HC-M35
HAND Cutting direction
R - Right
ID Technical product number
2931876
Interface codes
J6 /
ISYC Subclass
303-05 - T-slot end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI00800105
Materials
P,M,K
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number

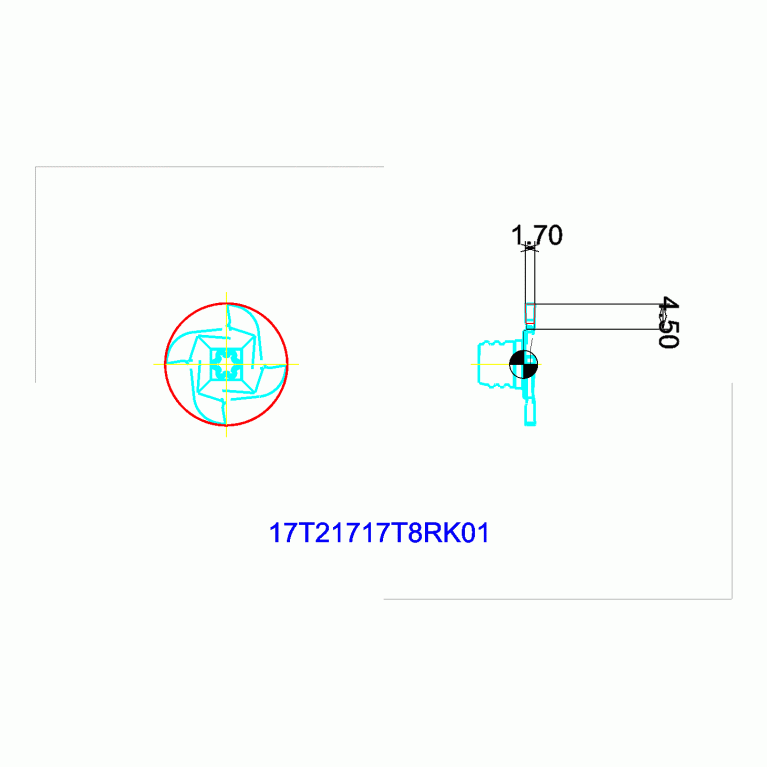

17T21717T8RK01 IN2005
OAL Overall length
8 mm
RE Corner radius
0.1 mm
THSZMS Connection thread nominal size machine side
T08
Working process
FNU - Groove milling
WT Weight of item
0.009 kg
ZEFP Peripheral effective cutting edge count
4
