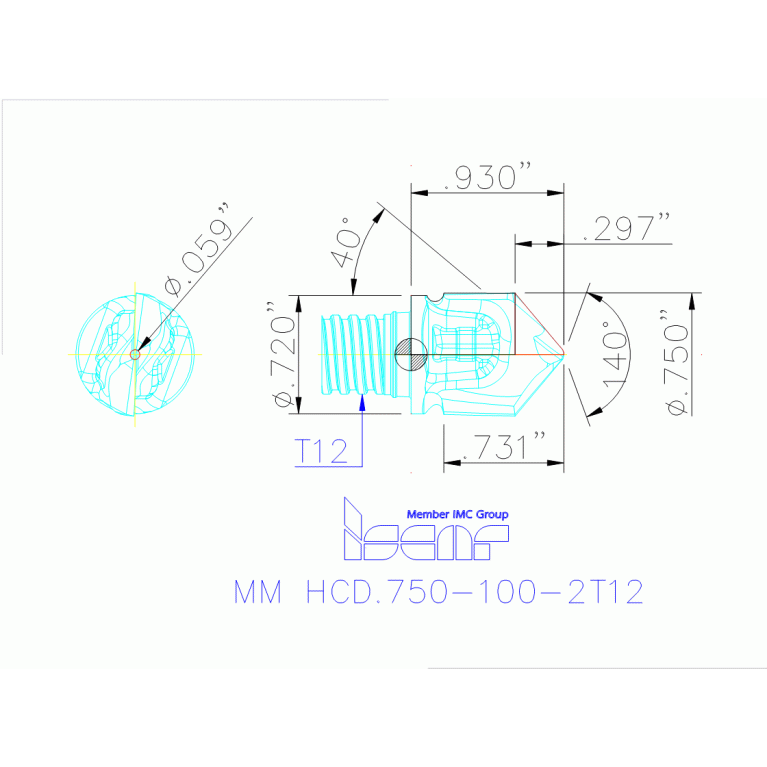

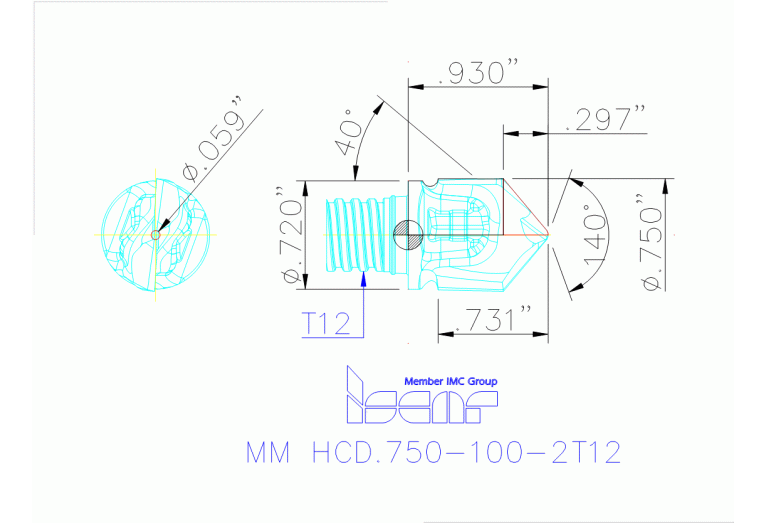

MM HCD.750-100-2T12 IC908

Артикул: 5668986

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI01200185

FamilyProducts

Interchangeable 2 Flute Solid Carbide Heads for Chamfering, Countersinking and Spot Drilling

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC908

HAND Cutting direction

R - Right

ID Technical product number

5668986

Interface codes

J6 / J61

ISO

SAI01C0120$$$$

ISYC Subclass

303-10 - Cutting stylus

LF Functional length

23.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0120

LOC-03 ISO

SAI01C0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01200185

LPR Protruding length

23.6 mm

LS Shank length

13.8 mm

Name Identifying order number

MM HCD.750-100-2T12 IC908

OAL Overall length

37.43 mm

PRFA Profile included angle

140 Degree

Working process

No working processes available

WT Weight of item

0.06 kg

ZEFF Face effective cutting edge count
