Главная Каталог продукции Toolunited 12 303-10 - Cutting stylus 6714 8.000

6714 8.000

Артикул: 9067140080000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00800105

FamilyProducts

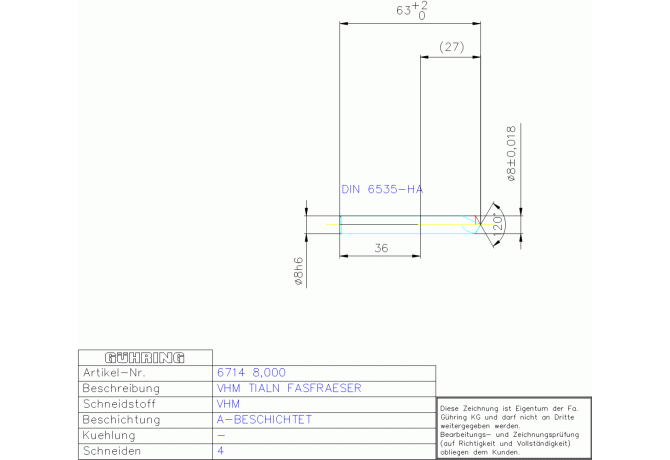

VHM FASFRAESER 120°TIALN WN 4S HA-SCHAFT

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9067140080000

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-10 - Cutting stylus

LF Functional length

63 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

27 mm

LS Shank length

36 mm

Name Identifying order number

6714 8.000

OAL Overall length

63 mm

PRFA Profile included angle

120 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FNU - Groove milling

WT Weight of item

0.048 kg

ZEFF Face effective cutting edge count
