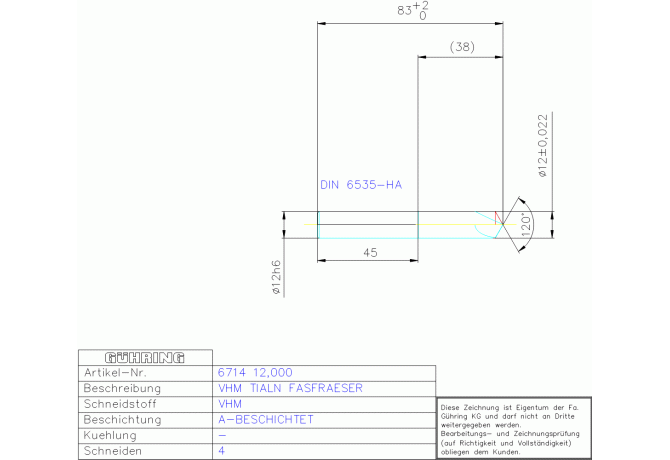

Главная Каталог продукции Toolunited 12 303-10 - Cutting stylus 6714 12.000

6714 12.000

Артикул: 9067140120000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01200105

FamilyProducts

VHM FASFRAESER 120°TIALN WN 4S HA-SCHAFT

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9067140120000

Interface codes

J6 /

ISYC Subclass

303-10 - Cutting stylus

LF Functional length

83 mm

LN Neck length

38 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

38 mm

LS Shank length

45 mm

Name Identifying order number

6714 12.000

OAL Overall length

83 mm

PRFA Profile included angle

120 Degree

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FNU - Groove milling

WT Weight of item

0.135 kg

ZEFF Face effective cutting edge count
