Главная Каталог продукции Toolunited 12 303-07 - Die end mill DLC4LATBR100T040AP20

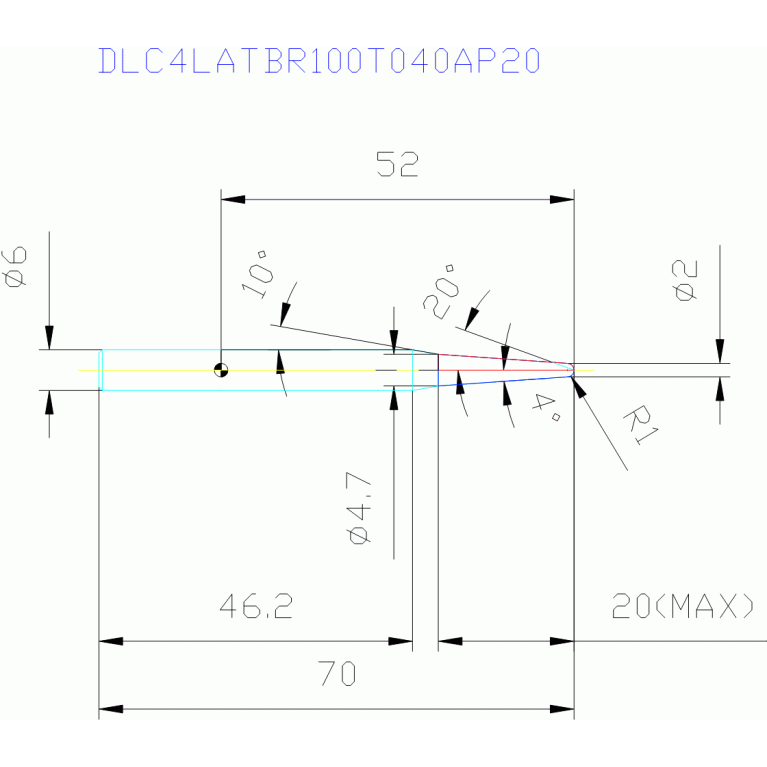

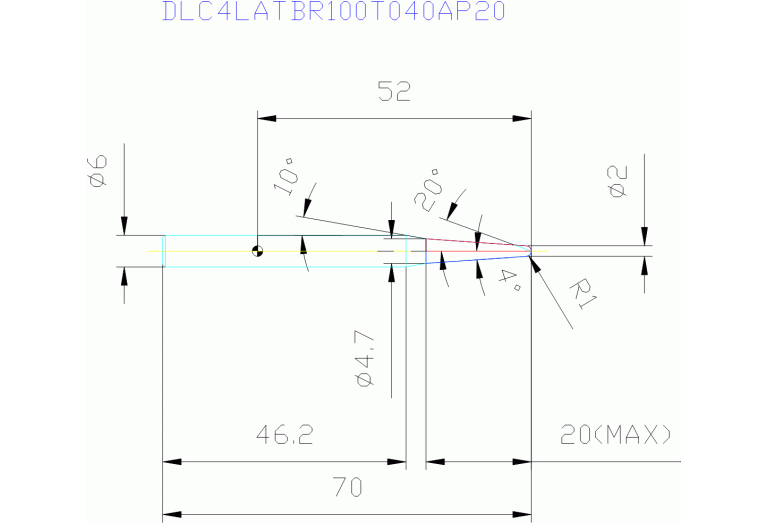

DLC4LATBR100T040AP20

Артикул: 10642443

В наличии

В корзину

Описание

Характеристики

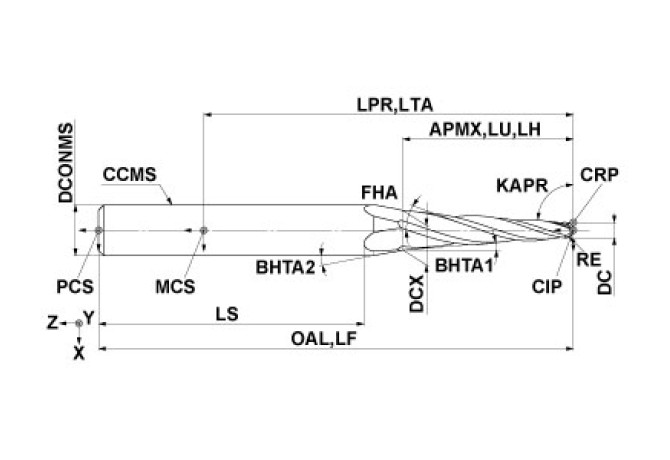

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DCX Cutting diameter maximum

4.7 mm

Delivery state valid from

4/1/2023

DIN

ZYL00600105

FamilyProducts

Carbide Tapered Blade Ball End Mill for Impeller Machining Made of Aluminum Alloy

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10642443

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-07 - Die end mill

LF Functional length

70 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

52 mm

LS Shank length

46.2 mm

Name Identifying order number

DLC4LATBR100T040AP20

OAL Overall length

70 mm

PRFA Profile included angle

8 Degree

PRFRAD Profile radius 1

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
