Главная Каталог продукции Toolunited 12 314-00 - Cartridge for indexable insert unspecified G4042-26N-4T40DX18

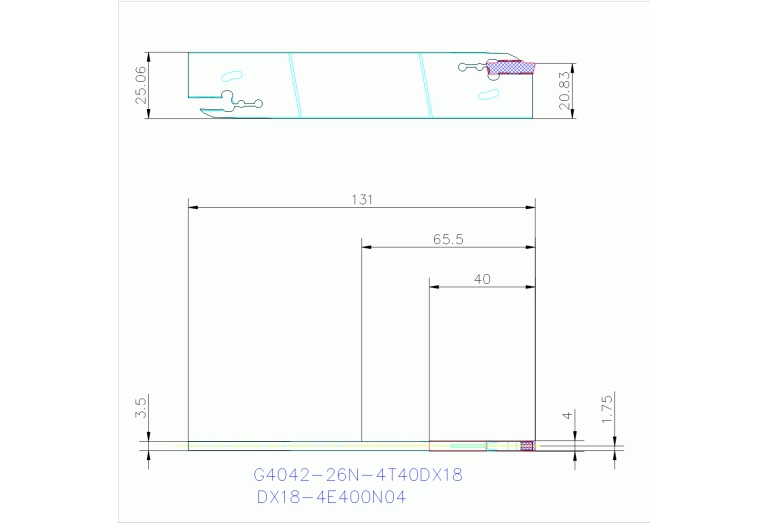

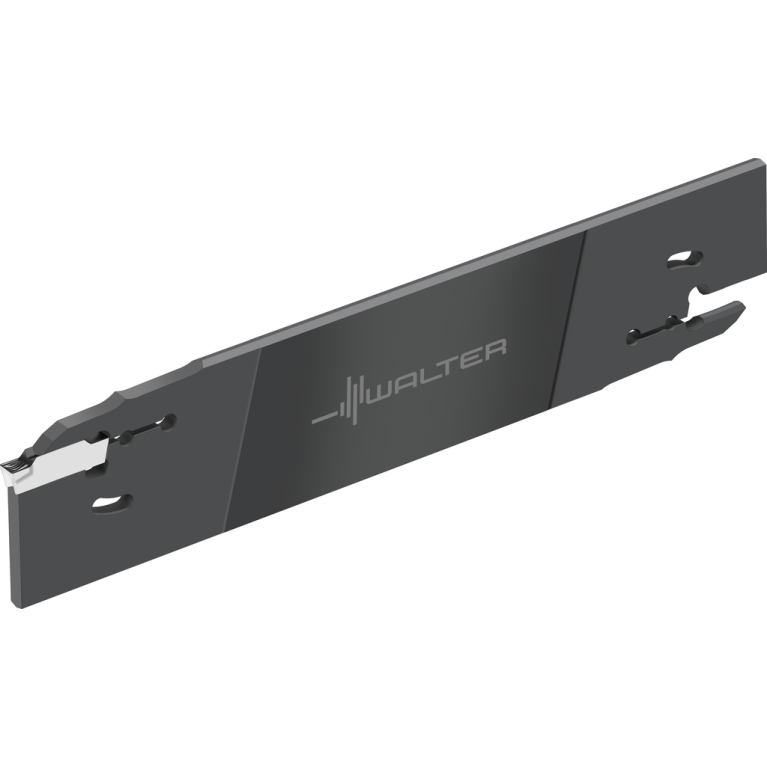

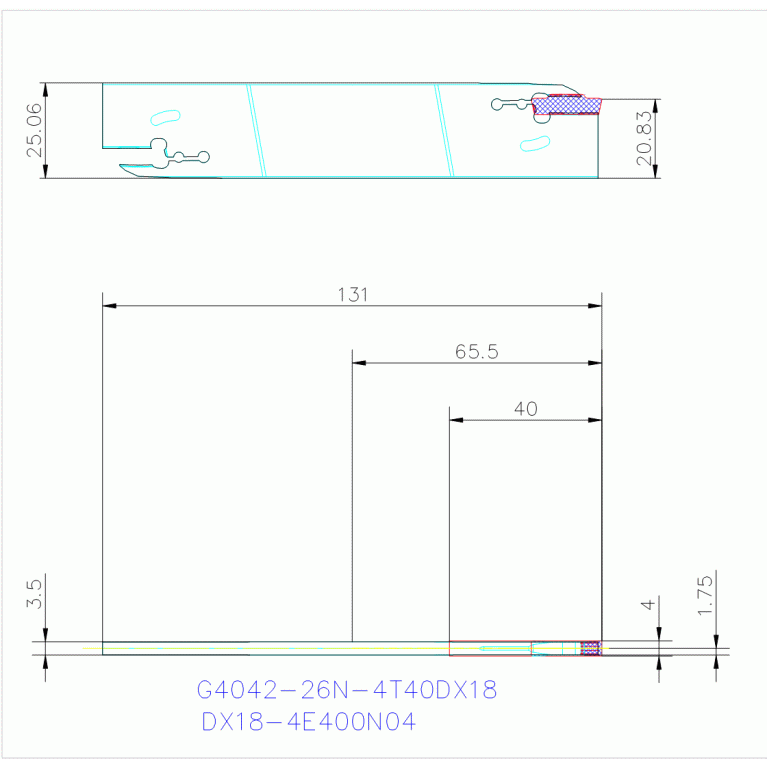

G4042-26N-4T40DX18

G4042-26N-4T40DX18 G4042-26N-4T40DX18 G4042-26N-4T40DX18 G4042-26N-4T40DX18

G4042-26N-4T40DX18

Walter
Артикул: 8120901
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
BMC Body material code
S - Solid steel
CDX Cutting depth maximum
40 mm
COMPC Company code
W - Walter
CW Cutting width
4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
PMW02600185
DIN CSW1
W-DX184000***EX**
FamilyProducts
Deep parting blade G4042...N
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
0 mm
ID Technical product number
8120901
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
PMW01C0260$$00
ISO CSW1
WR$$DX184000***EX**
ISYC Subclass
314-00 - Cartridge for indexable insert unspecified
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
130 mm
LOC-03 B Shank width
3.5 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
PMW Prism mounting WOHLHAUPTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0260
LOC-03 DCONMS Diameter
26 mm
LOC-03 H Shank height
26 mm
LOC-03 ISO
PMW01C0260$$00
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PMW02600185
LPR Protruding length
65 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G4042-26N-4T40DX18
OAH Overall height
26 mm
OAL Overall length
130 mm
THSC Tool holder shape code
G - straight shank design
WB Body width
3.4 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.077 kg
