Главная Каталог продукции Toolunited 12 314-00 - Cartridge for indexable insert unspecified CT10-CCLNX-1207

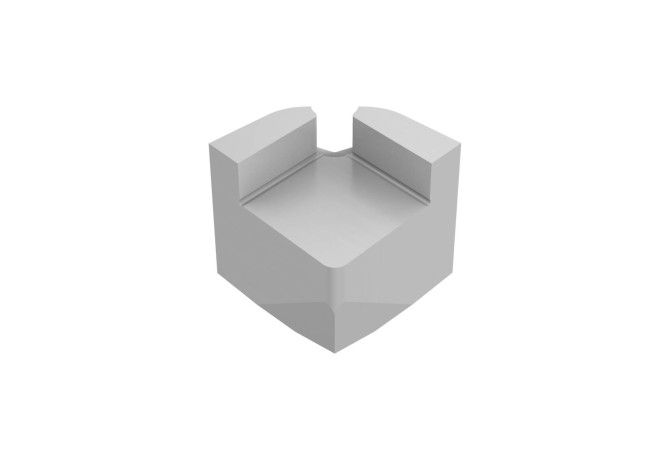

CT10-CCLNX-1207

Артикул: 03300024

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

1.4 mm

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

CN1207 1N

FamilyProducts

CT10-CCLNX-1207

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

N - Neutral

HF Functional height

15.53 mm

ID Technical product number

03300024

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

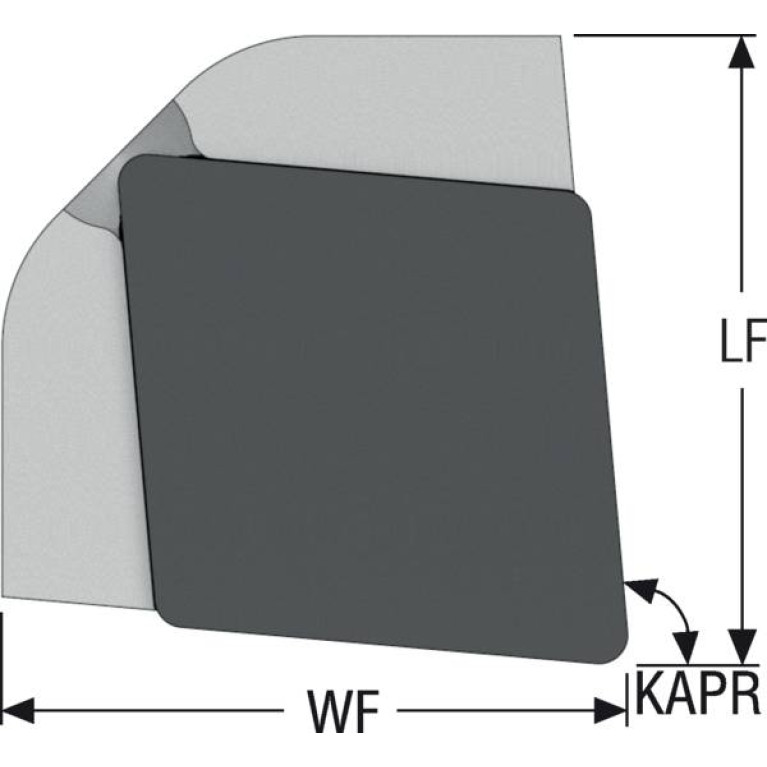

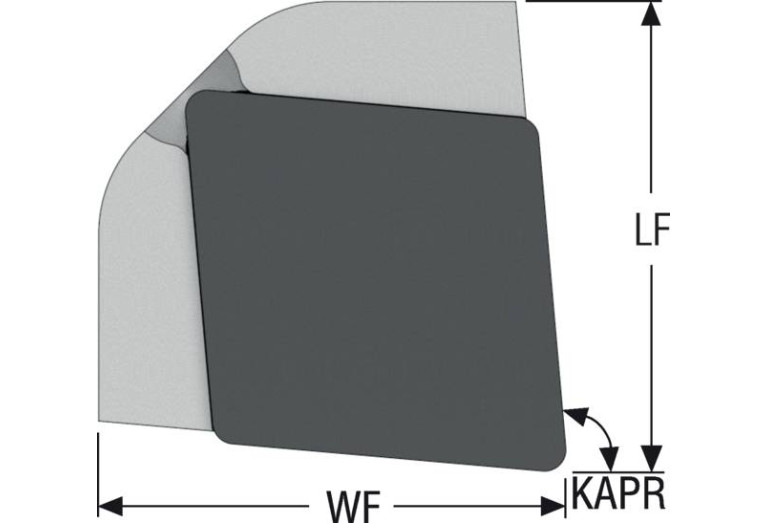

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-6 Degree

LF Functional length

17 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CT10-CCLNX-1207

NameAnsi Identifying order number inch alternative

CT10-CCLNX-45

WF Functional width

17 mm

Working process

No working processes available

WT Weight of item

0.017 kg
