Главная Каталог продукции Toolunited 12 303-06 - Ball-nosed end mill MA430-06.0A4220D-WJ30TF

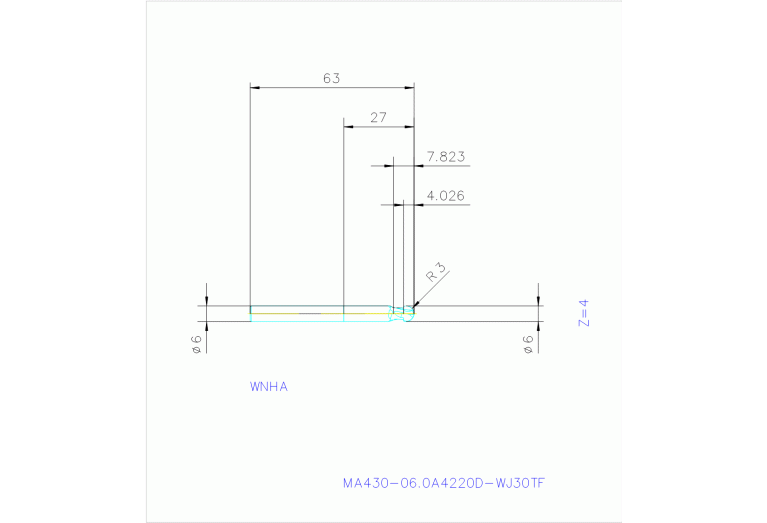

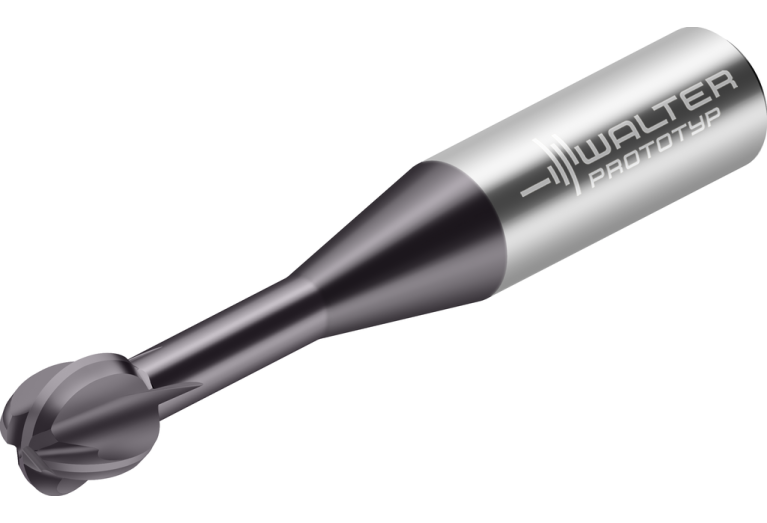

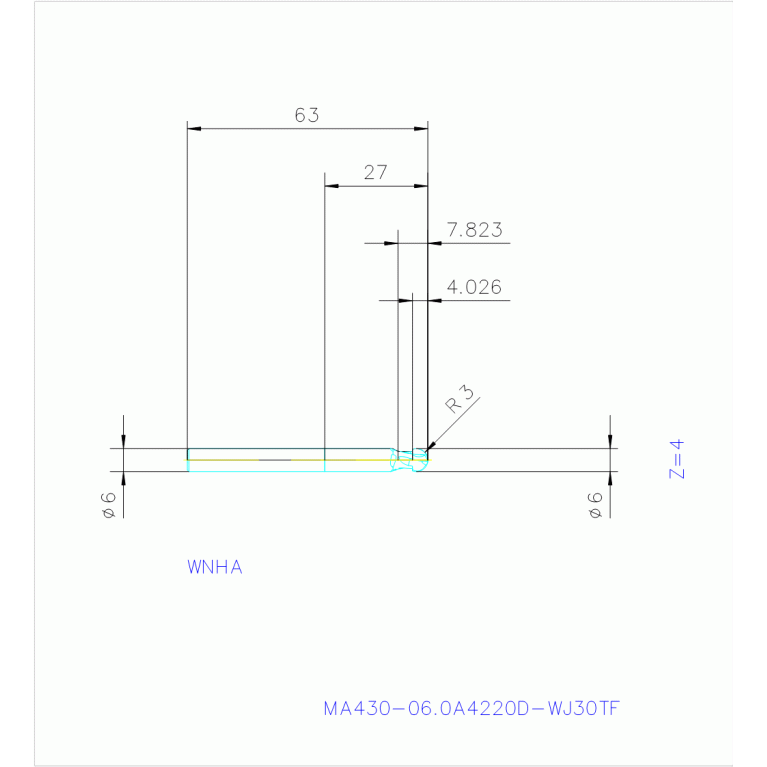

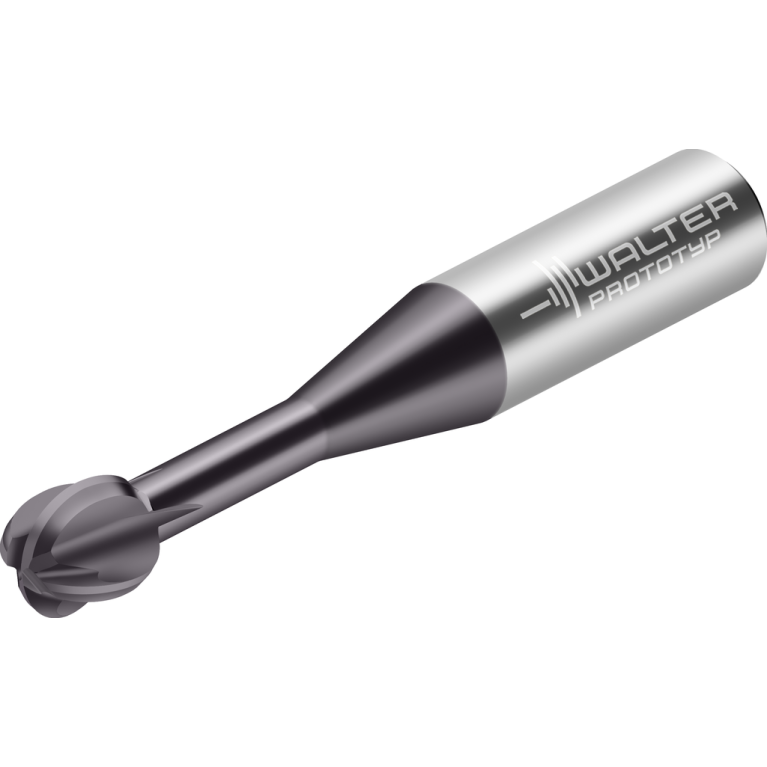

MA430-06.0A4220D-WJ30TF

MA430-06.0A4220D-WJ30TF MA430-06.0A4220D-WJ30TF MA430-06.0A4220D-WJ30TF MA430-06.0A4220D-WJ30TF

MA430-06.0A4220D-WJ30TF

Walter
Артикул: 8418157
В наличии
В корзину
Описание
Характеристики

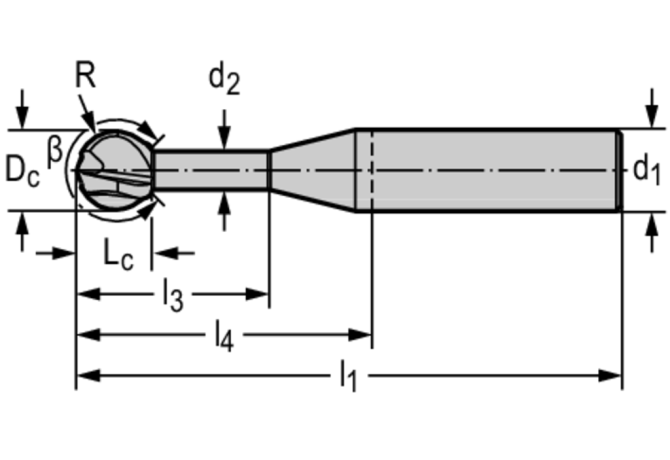

APMX Depth of cut maximum
3 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00600105
DN Neck diameter
4.5 mm
FamilyProducts
Solid carbide ball-nose copy milling cutters MA430
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
2 Degree
GRDMFG Grade manufacturers designation
WJ30TF
HAND Cutting direction
R - Right
ID Technical product number
8418157
Interface codes
J6 / J61
ISO
ZYL01F6000h$08
ISYC Subclass
303-06 - Ball-nosed end mill
LF Functional length
63 mm
LN Neck length
6.524 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$08
LOC-03 ISO
ZYL01F6000h$08
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
35 mm
LS Shank length
36 mm
Materials
P,M,K,S
Name Identifying order number
MA430-06.0A4220D-WJ30TF
OAL Overall length
63 mm
PRFRAD Profile radius 1
3 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
P-NORM
TCDCONMS ISO-tolerance class shank diameter
h8
Working process
FFO - Die milling
WT Weight of item
0.029 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
