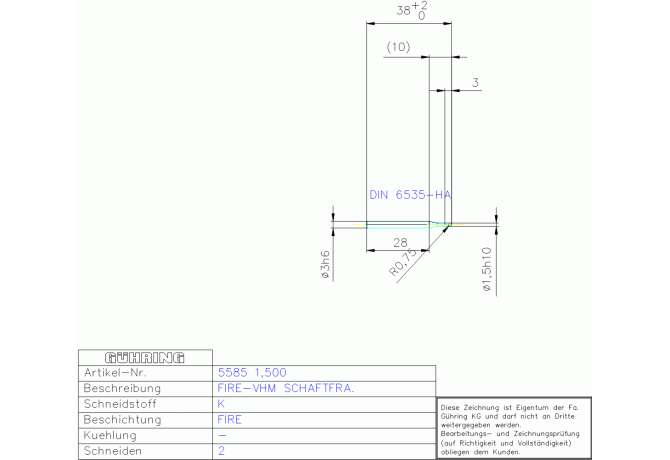

Главная Каталог продукции Toolunited 12 303-06 - Ball-nosed end mill 5585 1.500

5585 1.500

Артикул: 9055850015000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1.5 mm

DCONMSLD Shank diameter lower limit

-0.006 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00300105

FamilyProducts

VH SL-FIRE LANGL,FRA M.VOLLRAD.DIN6527

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

8 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9055850015000

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

38 mm

LN Neck length

6.4 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

10 mm

LS Shank length

28 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

5585 1.500

OAL Overall length

38 mm

PRFRAD Profile radius 1

0.75 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN6527L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.003 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
