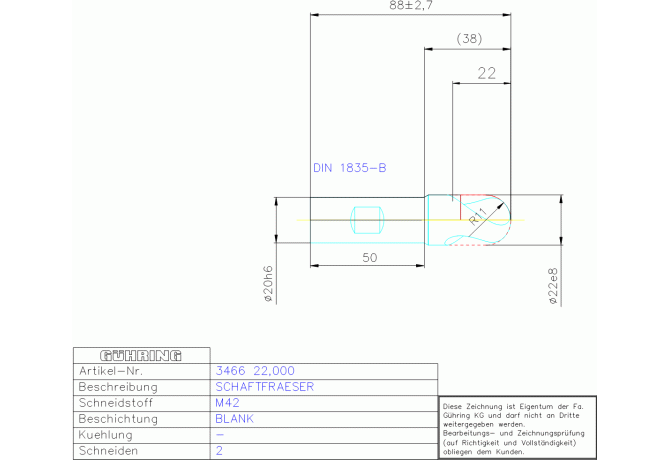

Главная Каталог продукции Toolunited 12 303-06 - Ball-nosed end mill 3466 22.000

3466 22.000

Артикул: 9034660220000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

22 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL02001005

FamilyProducts

M42 RADIUSFRAESER 22,000 DIN 327RN TYP N

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

125 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

M42

GRDMFG Grade manufacturers designation

M42

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9034660220000

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

63 mm

LN Neck length

38 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

38 mm

LS Shank length

50 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

3466 22.000

OAL Overall length

88 mm

PRFRAD Profile radius 1

11 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN327

Working process

FEC - Square shoulder milling

WT Weight of item

0.184 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
