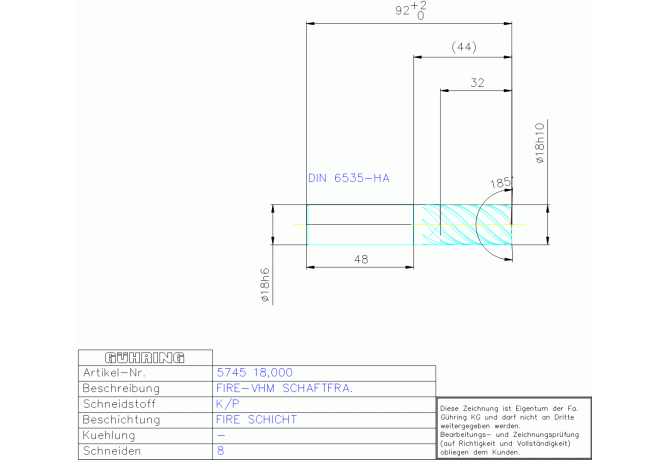

Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 5745 18.000

5745 18.000

Артикул: 9057450180000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.15 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

18 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01800105

FamilyProducts

VHM SL-FIRE FRA-SH WN LANG R NH 45 ZL HA

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

56 mm

GAMF Rake angle radial

45 Degree

GAMP Rake angle axial

7 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9057450180000

Interface codes

J6 / J61

ISO

ZYL01G1800h$06

ISYC Subclass

303-00 - End mill unspecified

KCH Corner chamfer angle

45 Degree

LF Functional length

92 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1800h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800105

LPR Protruding length

44 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

5745 18.000

OAL Overall length

92 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.33 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
