Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 3631 8.000

3631 8.000

Артикул: 9036310080000

В наличии

В корзину

Описание

Характеристики

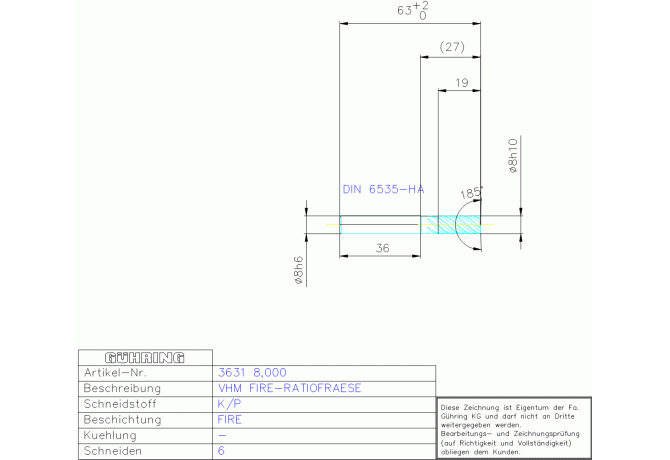

APMX Depth of cut maximum

19 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00800105

DN Neck diameter

7.7 mm

FamilyProducts

VHM F-FRA-SH 6S RF1 WN NH 44/45/46 ZYLHA

FHA Flute helix angle

44 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

26.5 mm

GAMF Rake angle radial

44 Degree

GAMP Rake angle axial

7 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9036310080000

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-00 - End mill unspecified

KCH Corner chamfer angle

45 Degree

LF Functional length

63 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

27 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3631 8.000

OAL Overall length

63 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.04 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
