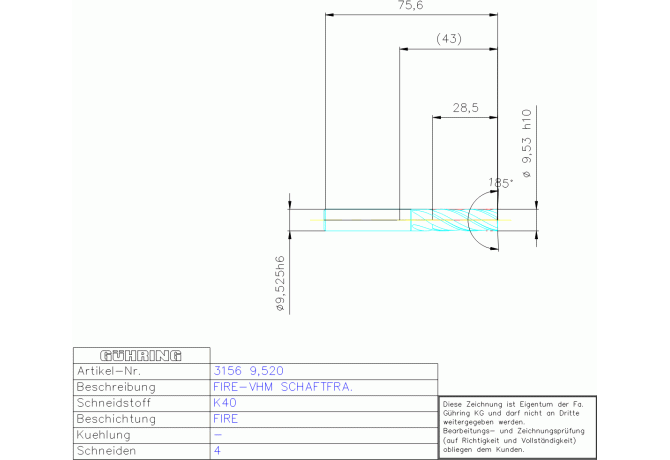

Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 3156 9.520

3156 9.520

Артикул: 9031560095200

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

28.5 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

9.525 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL03750125

FamilyProducts

VHM FIRE FRA-SH WN-USA LG 9,525 3/8

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

50 mm

GAMF Rake angle radial

30 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9031560095200

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

KCH Corner chamfer angle

45 Degree

LF Functional length

76.2 mm

LN Neck length

38.025 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0375

LOC-03 DCONMS Diameter

9.525 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03750125

LPR Protruding length

43 mm

LS Shank length

38.175 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3156 9.520

OAL Overall length

76.2 mm

STDNO Standard

WN USA

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.066 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
