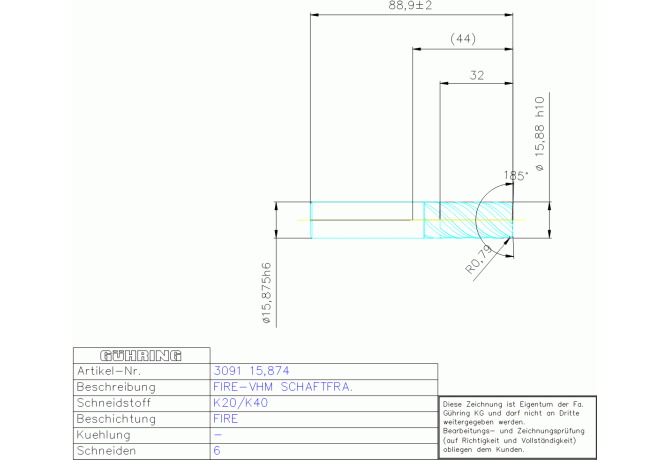

Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 3091 15.874

3091 15.874

Артикул: 9030910158740

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

15.875 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL06250125

FamilyProducts

VH FIRE SH-FRA WN-USA KU 15,875 M,ER

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

50 mm

GAMF Rake angle radial

45 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9030910158740

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LF Functional length

88.9 mm

LN Neck length

39 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0625

LOC-03 DCONMS Diameter

15.875 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250125

LPR Protruding length

44 mm

LS Shank length

49.9 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3091 15.874

OAL Overall length

88.9 mm

RE Corner radius

0.787 mm

STDNO Standard

WN USA

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.212 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
