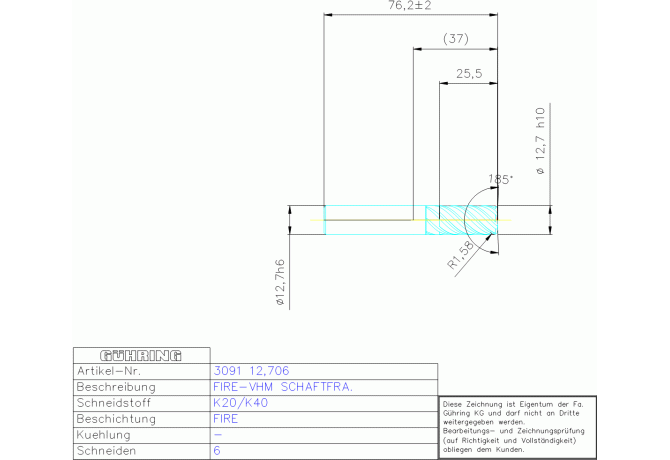

Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 3091 12.706

3091 12.706

Артикул: 9030910127060

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

25.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12.7 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL05000125

FamilyProducts

VH FIRE SH-FRA WN-USA KU 12,700 M,ER

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

40 mm

GAMF Rake angle radial

45 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9030910127060

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LF Functional length

76.2 mm

LN Neck length

31.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000125

LPR Protruding length

37 mm

LS Shank length

44.7 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3091 12.706

OAL Overall length

76.2 mm

RE Corner radius

1.575 mm

STDNO Standard

WN USA

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.118 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
