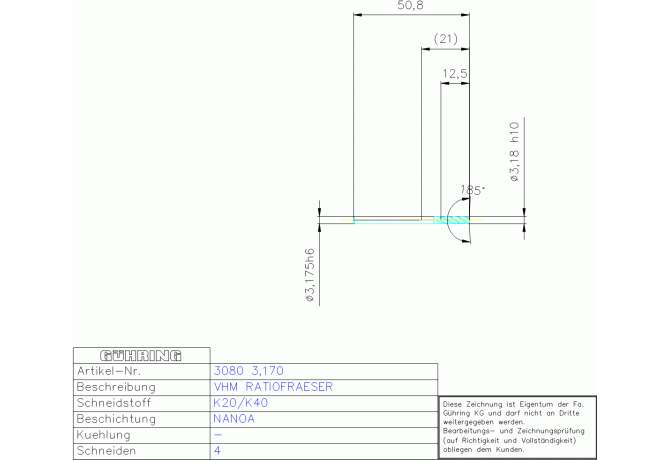

Главная Каталог продукции Toolunited 12 303-00 - End mill unspecified 3080 3.170

3080 3.170

Артикул: 9030800031700

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12.5 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

NANO-A

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3.175 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01250125

FamilyProducts

VHM NANO-A FRA-SH RF100 36/38° WN-USA 4S

FHA Flute helix angle

36 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

13.7 mm

GAMF Rake angle radial

36 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9030800031700

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

KCH Corner chamfer angle

45 Degree

LN Neck length

15.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

3.175 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250125

LPR Protruding length

21 mm

LS Shank length

35.3 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3080 3.170

OAL Overall length

50.8 mm

STDNO Standard

WN USA

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling

WT Weight of item

0.007 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
