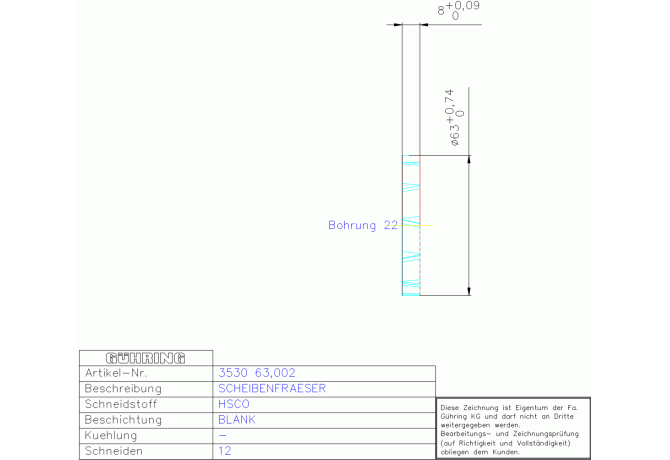

Главная Каталог продукции Toolunited 12 304-04 - Slotting cutter 3530 63.002

3530 63.002

Артикул: 9035300630020

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

14.5 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CWN Cutting width minimum

8 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

63 mm

DCONMSUD Shank diameter upper limit

0.021 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

FDA02202100

FamilyProducts

HSCO SCHEIBENFRAESER 63X8 DIN 885RN TYP

FHA Flute helix angle

12 Degree

FHH Flute helix hand

N - Hand of helix neutral

FHP Flute helix pitch

900 mm

GAMF Rake angle radial

12 Degree

GAMP Rake angle axial

11 Degree

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9035300630020

Interface codes

J6 /

ISYC Subclass

304-04 - Slotting cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202100

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3530 63.002

OAW Overall width

8 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN885

Working process

FNU - Groove milling

WT Weight of item

0.126 kg

ZEFP Peripheral effective cutting edge count
