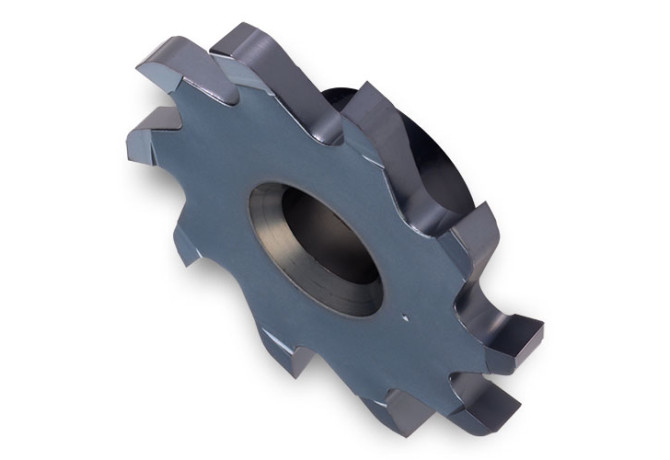

Главная Каталог продукции Toolunited 12 304-04 - Slotting cutter 18T24730LPRN04 IN2005

18T24730LPRN04 IN2005

Артикул: 6324371

В наличии

В корзину

Описание

Характеристики

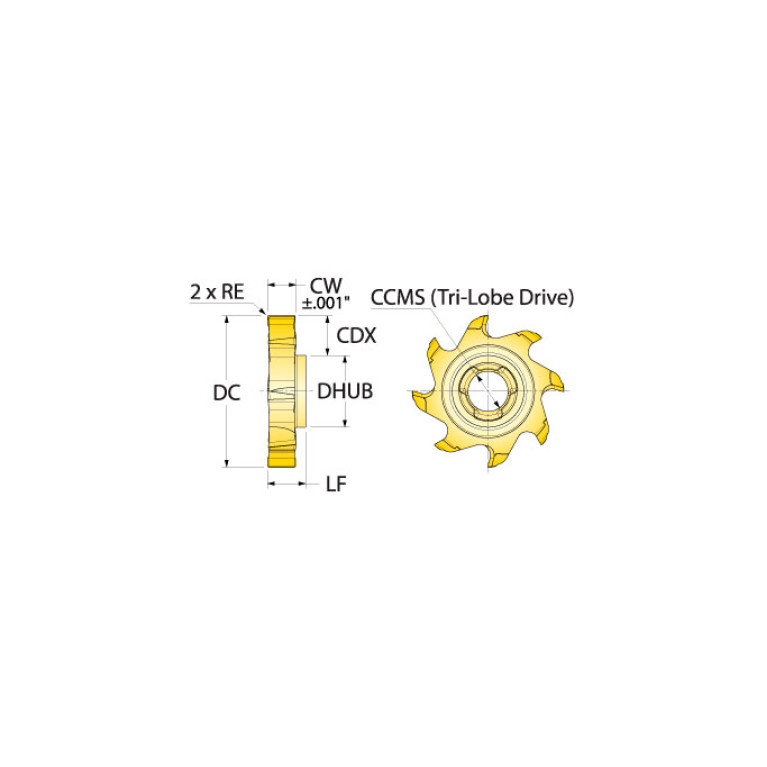

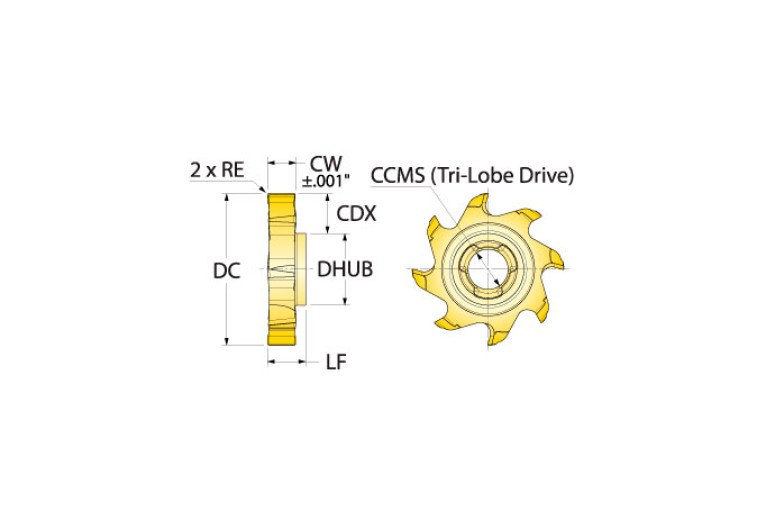

BMC Body material code

H - Solid carbide

CDX Cutting depth maximum

3 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CWN Cutting width minimum

5.5 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

24.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DHUB Hub diameter

7.5 mm

DIN

IL-K-1398

F71 Number of corner designs

FamilyProducts

Multisurfer

FHH Flute helix hand

X - Cross-cut

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

6324371

Interface codes

J6 /

ISYC Subclass

304-04 - Slotting cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-K-1398

Materials

P,M,K

MILTTY Mill tool type ISO

C - Disc mill - three side cutting

Name Identifying order number

18T24730LPRN04 IN2005

OAW Overall width

8 mm

RE Corner radius

0.4 mm

Working process

FNU - Groove milling

WT Weight of item

0.015 kg

ZEFP Peripheral effective cutting edge count
