Главная Каталог продукции Toolunited 12 303-09 - Thread end mill TC645-UNC5/16-A1D-WB10TJ

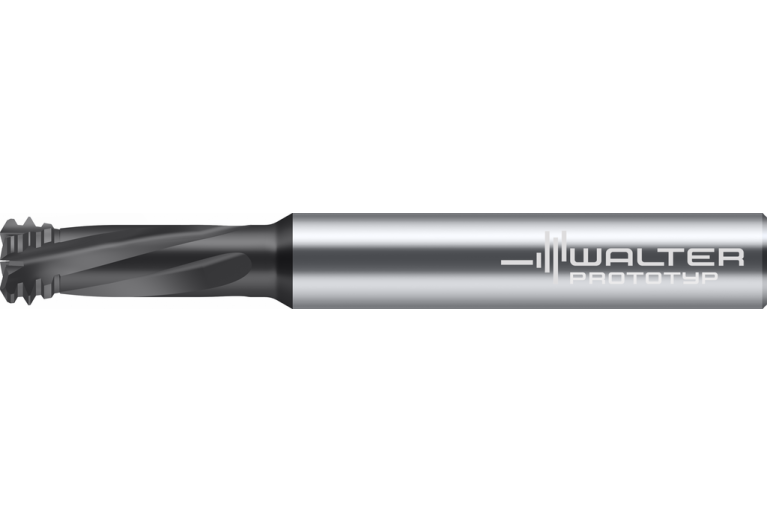

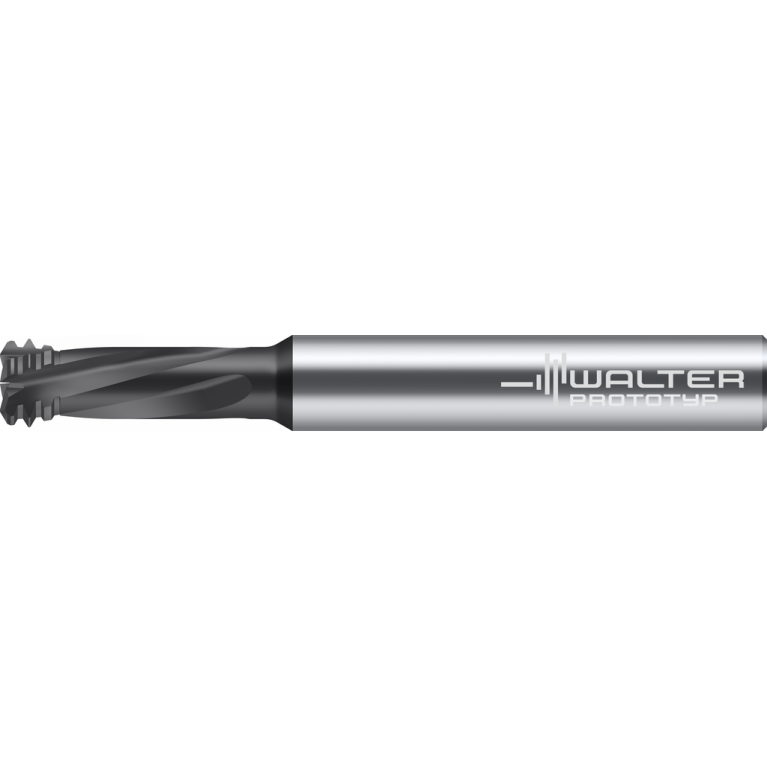

TC645-UNC5/16-A1D-WB10TJ

TC645-UNC5/16-A1D-WB10TJ TC645-UNC5/16-A1D-WB10TJ TC645-UNC5/16-A1D-WB10TJ

TC645-UNC5/16-A1D-WB10TJ

Walter
Артикул: 8378431
В наличии
В корзину
Описание
Характеристики

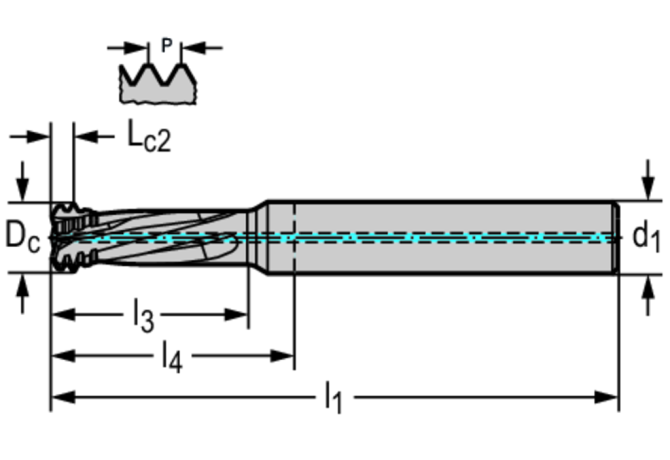

APMX Depth of cut maximum
4.38 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
AlTiN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
5.9 mm
Delivery state valid from
12/1/2023
DIN
ZYL00600115
DN Neck diameter
4.21 mm
FamilyProducts
Orbital thread mill drill TC645
FHA Flute helix angle
20 Degree
FHH Flute helix hand
L - Hand of helix left
GAMF Rake angle radial
-3.5 Degree
GRDMFG Grade manufacturers designation
WB10TJ
HAND Cutting direction
L - Left
ID Technical product number
8378431
Interface codes
J6 / J61
ISO
ZYL01F6000h$06
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LPR Protruding length
21 mm
LS Shank length
36 mm
Materials
P,M,K,N,S,H,O
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
TC645-UNC5/16-A1D-WB10TJ
OAL Overall length
57 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h6
TDFR Thread diameter nominal fraction
5/16 in
THFT Thread form type
UNC
TPI Threads per inch
18 1/in
Working process
FPR - Profile milling,FZI - Circular milling
WT Weight of item
0.001 kg
ZEFP Peripheral effective cutting edge count
4
