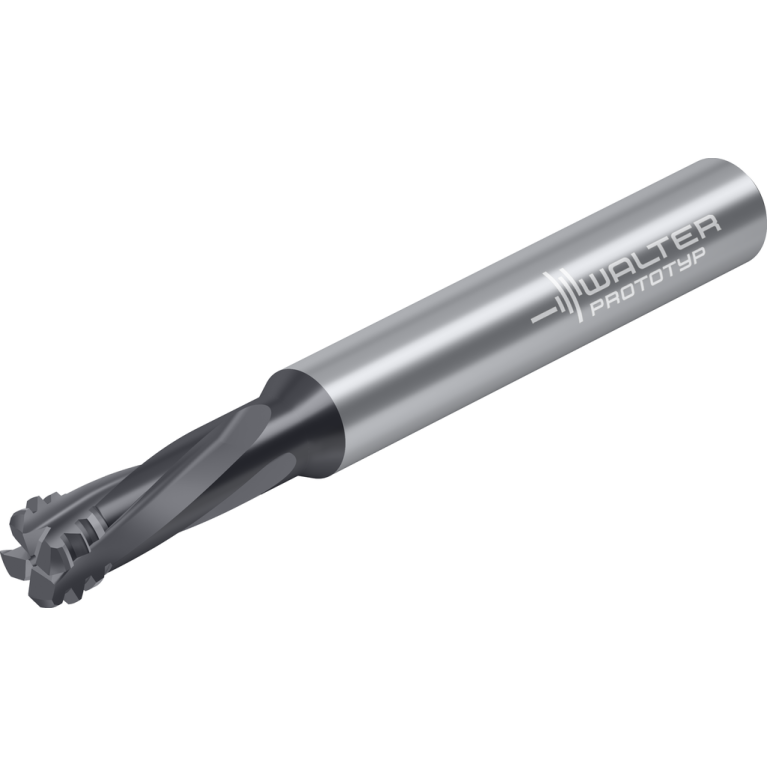

TC645-M4-A1D-WB10TJ

TC645-M4-A1D-WB10TJ TC645-M4-A1D-WB10TJ TC645-M4-A1D-WB10TJ

TC645-M4-A1D-WB10TJ

Walter
Артикул: 8378416
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
2.17 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
AlTiN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
3.05 mm
Delivery state valid from
12/1/2023
DIN
ZYL00600115
DN Neck diameter
2.19 mm
FamilyProducts
Orbital thread mill drill TC645
FHA Flute helix angle
20 Degree
FHH Flute helix hand
L - Hand of helix left
GAMF Rake angle radial
-3.5 Degree
GRDMFG Grade manufacturers designation
WB10TJ
HAND Cutting direction
L - Left
ID Technical product number
8378416
Interface codes
J6 / J61
ISO
ZYL01F6000h$06
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LPR Protruding length
14 mm
LS Shank length
36 mm
Materials
P,M,K,N,S,H,O
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
TC645-M4-A1D-WB10TJ
OAL Overall length
50 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h6
TD Thread diameter
4 mm
THFT Thread form type
M
TP Thread pitch
0.7 mm
Working process
FPR - Profile milling,FZI - Circular milling
WT Weight of item
0.02 kg
ZEFP Peripheral effective cutting edge count
4
